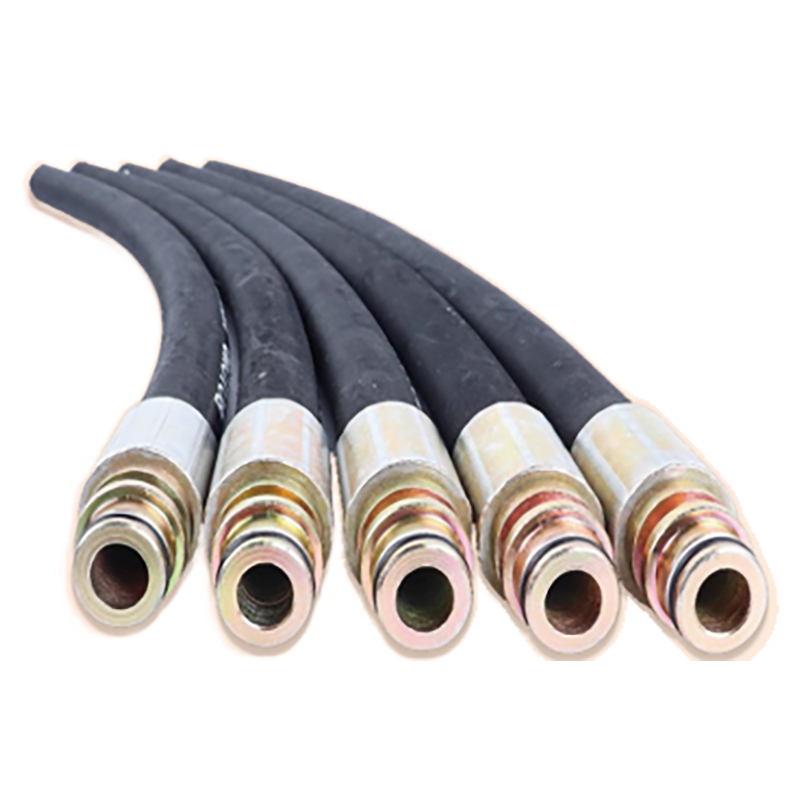

Wire-wrapped Hose
1. The inner layer of mine wire wrapped hose is smooth and leak-free. Combined with special joints, it can achieve high sealing and prevent liquid or gas leakage.
2. Mine wire wrapped hose is highly flexible and adaptable to complex installation environments. It is not easy to break or fracture.
3. Mine wire wrapped hose adopts a braided reinforced layer structure design and can withstand high working pressure.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- 100,000 pieces/year
- Information
Introduction of mine wire wrapped hose:
Mine wire wrapped hose is a flexible pipe made of rubber material, mainly composed of a liquid-resistant synthetic rubber inner rubber layer, a steel wire reinforcement layer and a synthetic rubber outer layer with excellent weather resistance. Mining hose has obtained the coal mine safety mark certificate, has good high pressure resistance, wear resistance, corrosion resistance, high flexibility and bending, flame retardancy and antistatic properties. Mining hose can be used as a soft connection pipeline for hydraulic transmission of power for various machines such as mining machinery, engineering machinery, metallurgical machinery, etc.
Features of multi-layer steel wrapped wire hose:
1. The inner rubber material of multi-layer steel wrapped wire hose has good wear resistance and is suitable for conveying easily abrasive media such as particles or mud.
2. Multi-layer steel wrapped wire hose is made of corrosion-resistant rubber material and is suitable for conveying a variety of industrial media.
3. The rubber of multi-layer steel wrapped wire hose itself has excellent elasticity and buffering properties, which can effectively absorb vibration and noise and protect the stable operation of the system.
4. The inner layer of multi-layer steel wrapped wire hose is smooth and leak-free. Combined with special joints, it can achieve high sealing to prevent liquid or gas leakage.
Data of multi-layer steel wrapped wire hose:
| Hose type | Hose specification | Inner diameter d1 (mm) | Reinforcement layer outer diameter d2 (mm) | Outer diameter d3 (mm) | Design working pressure (MPa) | Allowable working pressure (MPa) | Burst pressure (MPa) | Minimum bending radius (mm) |
| Braided rubber hose | RB1-10 | 9.7±0.4 | 15.1±0.6 | 19.8±0.8 | 18 | 29 | 72 | 130 |
| RB1-12.5 | 12.9±0.6 | 18.3±0.8 | 23±0.8 | 16 | 26 | 64 | 180 | |
RB1-16 | 16.1±0.6 | 21.4±0.8 | 26.2±0.8 | 13 | 21 | 52 | 200 | |
RB1-19 | 19.2±0.6 | 25.4±0.8 | 30.2±0.8 | 10.5 | 17 | 42 | 240 | |
RB1-25 | 25.7±0.7 | 33.3±0.8 | 38.1±1.0 | 8.7 | 14 | 35 | 300 | |
RB1-31.5 | 32.2±0.8 | 40.5±1.2 | 46±1.6 | 6.3 | 10 | 25 | 420 | |
RB1-38 | 38.5±0.8 | 46.8±1.2 | 52.4±1.6 | 5 | 8 | 20 | 500 | |
RB1-51 | 51.2±0.8 | 60.2±1.5 | 66.7±1.6 | 4 | 6 | 16 | 630 | |
RB2-10 | 9.7±0.4 | 16.7±0.6 | 21.4±0.8 | 33 | 53 | 132 | 130 | |
RB2-12.5 | 12.9±0.6 | 19.8±0.8 | 24.6±0.8 | 27.5 | 44 | 110 | 180 | |
RB2-16 | 16.1±0.6 | 23±0.8 | 27.8±0.8 | 25 | 40 | 100 | 200 | |
RB2-19 | 19.2±0.6 | 27±0.8 | 31.8±0.8 | 21.5 | 34 | 86 | 240 | |
RB2-25 | 25.7±0.7 | 34.9±0.8 | 39.7±1.2 | 16.5 | 26 | 66 | 300 | |
RB2-31.5 | 32.2±0.8 | 44.4±1.2 | 50.8±1.6 | 12.5 | 20 | 50 | 420 | |
RB2-38 | 38.5±0.8 | 50.8±1.2 | 57.2±1.6 | 9 | 14 | 36 | 500 | |
RB2-51 | 51.2±0.8 | 63.5±1.2 | 69.8±1.6 | 8 | 13 | 32 | 630 |
Application of multi-layer steel wrapped wire hose:
Multi-layer steel wrapped wire hose is mainly used for mine hydraulic support and oil field development. It is suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and various industrial departments. The mechanization and automation hydraulic system conveys petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquids (such as emulsions, oil-water emulsions, water) and liquid transmission with certain pressure (higher pressure) and temperature.
