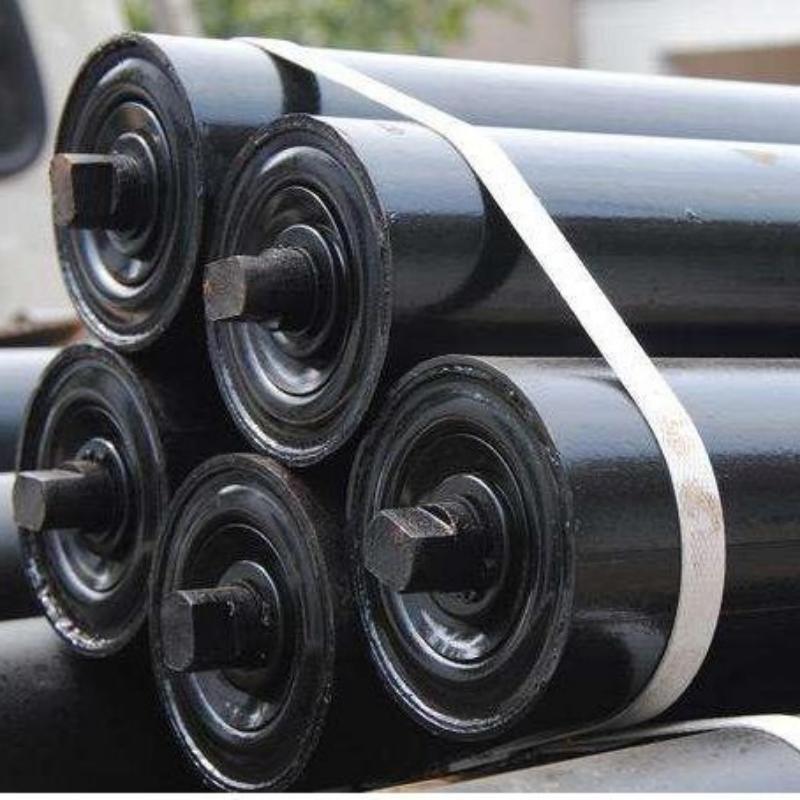

Reverse Stop Roller

Introduction of  anti-reverse high speed conveyor rollers:

Anti-reverse high speed conveyor rollers are special rollers used in belt conveyors. Mining conveyor rollers's main function is to prevent the conveyor belt from reversing or sliding during operation, ensuring the normal operation of the conveying system and the safety of workers. This type of roller can provide sufficient friction to prevent the conveyor belt from reversing when the conveyor belt breaks or other abnormal conditions occur through design and structural improvements, thereby avoiding equipment damage, casualties and production interruptions caused by reversal.

Parameters of mining conveyor rollers:

Note: L is the length of the roller

Principle of anti-reverse one-way rollers:

Anti-reverse mining conveyor rollers use the working principle of the ratchet mechanism to add a backstop behind the ordinary roller bearing seat. There are 4 check blocks inside the check valve, and a check groove is machined at the corresponding position where the check valve is installed on the check roller shaft. When the conveyor belt rotates normally, the check block is separated from the check groove and adheres to the inner wall of the check valve under the action of centrifugal force, so that the anti-reverse mining conveyor rollers rotate normally; when the belt breaks and the check roller reverses, the check block prevents the reverse rotation, thereby realizing the anti-reverse function.

Application scenarios of anti-reverse mining conveyor rollers:

1. Coal mines: Anti-reverse mining conveyor rollers are widely used in coal mines and other environments, in large-angle belt conveyors, to prevent materials and belts from sliding down due to broken belts, to avoid equipment damage and roadway blockage.

2. Open-air dusty and highly corrosive environments: Such as mines, power plants, steel plants, stone plants, cement plants and coking plants, coal washing plants, salt plants, alkali plants, fertilizer plants, docks and other transportation places.

3. Inclined conveyor: Used on uphill conveyor belts in underground or open-pit mines to prevent materials and conveyor belts from sliding down during downtime.

Advantages of anti-reverse one-way rollers:

1. Anti-reverse one-way rollers are made of high-quality materials and have the characteristics of small radial runout and small rotational resistance.

2. Anti-reverse one-way rollers use advanced sealing structures to effectively prevent dust, moisture and other impurities from entering.

3. The design of anti-reverse one-way rollers optimizes rotational resistance and one-way rollers has low noise during operation.

4. Anti-reverse one-way rollers are easy and quick to install, one-way rollers reducing installation and maintenance costs.
