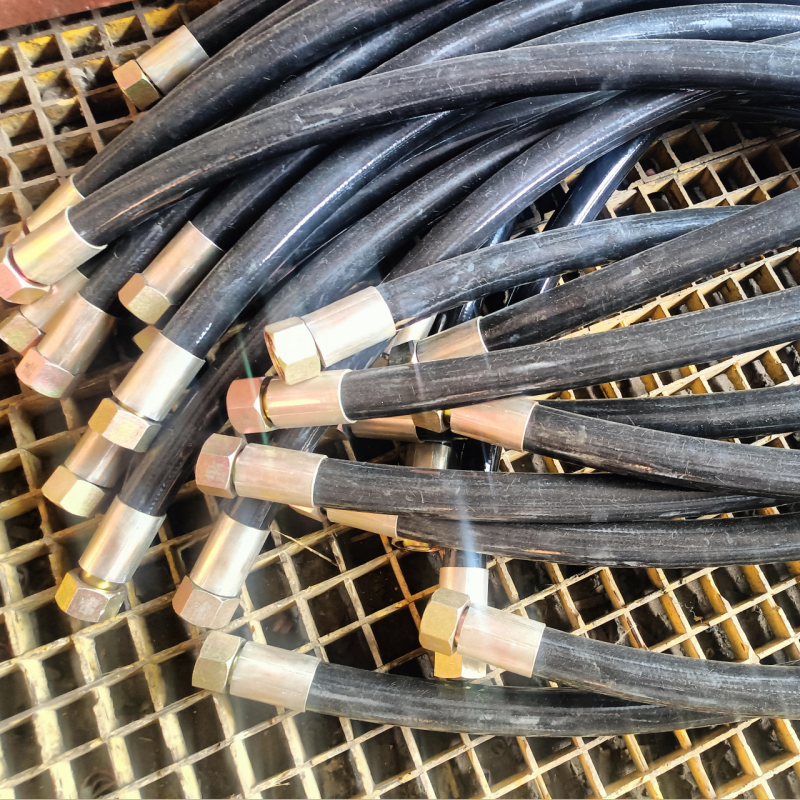

Wire Braided Hose
1. Steel wire braided hose adopts high-strength steel wire braided structure, which can withstand high-pressure working environment.
2. Steel wire braided hose has good flexibility and is easy to install and lay pipes.
3. Steel wire braided hose adopts high-quality rubber material and has excellent wear resistance and corrosion resistance.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of steel wire braided hose:
Steel wire braided hose is a pipeline product made of a variety of materials and processes. It is mainly composed of a liquid-resistant synthetic rubber inner layer, a steel wire reinforcement layer and a synthetic rubber outer layer with excellent weather resistance. Rubber mining hose is widely used in industry, agriculture and engineering fields. Its main structure includes a liquid-resistant synthetic rubber inner layer, a steel wire reinforcement layer and a synthetic rubber outer layer with excellent weather resistance. Our rubber mining hose has a coal mine safety mark certificate, has good flame retardancy and antistatic properties, and has high flexibility and bendability.
Features of wire braid hydraulic hose:
1. Wire braid hydraulic hose has good high temperature resistance and rubber mining hose is not easy to age and crack.
2. The interlayer bonding of wire braid hydraulic hose is tight, rubber mining hose can effectively prevent liquid leakage.
3. The inner rubber layer of wire braid hydraulic hose is made of oil-resistant and alkali-resistant synthetic rubber, rubber mining hose can transport fuel, hydraulic oil, chemicals, etc.
4. Wire braid hose is safe and reliable, and rubber mining hose adopts anti-static design to avoid the danger caused by static electricity accumulation.
5. Wire braid hose can be customized according to customer needs.

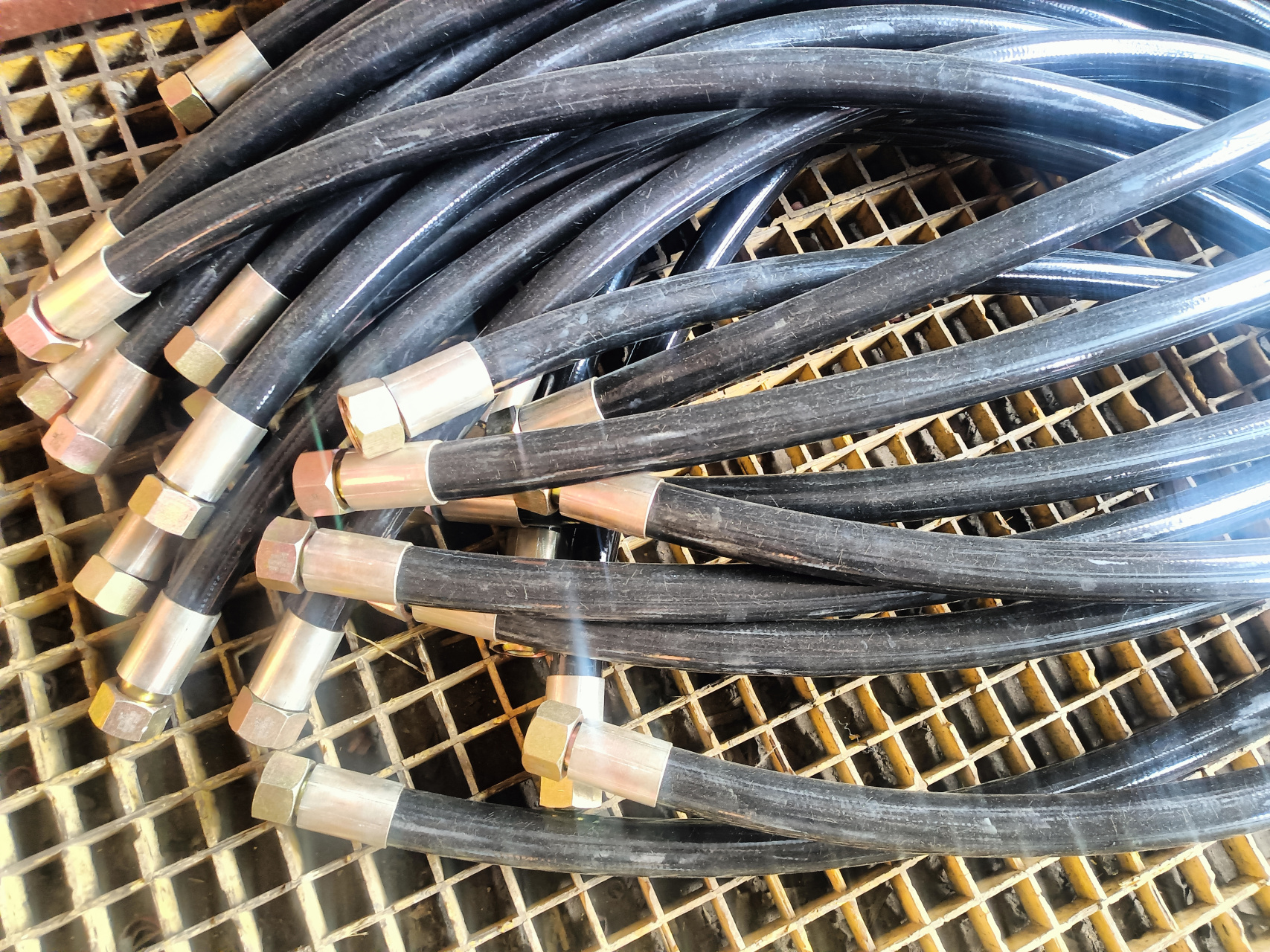

Data of rubber mining hose:
| Hose type | Hose specification | Inner diameter d1 (mm) | Reinforcement layer outer diameter d2 (mm) | Outer diameter d3 (mm) | Design working pressure (MPa) | Allowable working pressure (MPa) | Burst pressure (MPa) | Minimum bending radius (mm) |
| Braided rubber hose | RB1-10 | 9.7±0.4 | 15.1±0.6 | 19.8±0.8 | 18 | 29 | 72 | 130 |
RB1-12.5 | 12.9±0.6 | 18.3±0.8 | 23±0.8 | 16 | 26 | 64 | 180 | |
| RB1-16 | 16.1±0.6 | 21.4±0.8 | 26.2±0.8 | 13 | 21 | 52 | 200 | |
| RB1-19 | 19.2±0.6 | 25.4±0.8 | 30.2±0.8 | 10.5 | 17 | 42 | 240 | |
| RB1-25 | 25.7±0.7 | 33.3±0.8 | 38.1±1.0 | 8.7 | 14 | 35 | 300 | |
| RB1-31.5 | 32.2±0.8 | 40.5±1.2 | 46±1.6 | 6.3 | 10 | 25 | 420 | |
| RB1-38 | 38.5±0.8 | 46.8±1.2 | 52.4±1.6 | 5 | 8 | 20 | 500 | |
| RB1-51 | 51.2±0.8 | 60.2±1.5 | 66.7±1.6 | 4 | 6 | 16 | 630 | |
| RB2-10 | 9.7±0.4 | 16.7±0.6 | 21.4±0.8 | 33 | 53 | 132 | 130 | |
| RB2-12.5 | 12.9±0.6 | 19.8±0.8 | 24.6±0.8 | 27.5 | 44 | 110 | 180 | |
| RB2-16 | 16.1±0.6 | 23±0.8 | 27.8±0.8 | 25 | 40 | 100 | 200 | |
| RB2-19 | 19.2±0.6 | 27±0.8 | 31.8±0.8 | 21.5 | 34 | 86 | 240 | |
| RB2-25 | 25.7±0.7 | 34.9±0.8 | 39.7±1.2 | 16.5 | 26 | 66 | 300 | |
| RB2-31.5 | 32.2±0.8 | 44.4±1.2 | 50.8±1.6 | 12.5 | 20 | 50 | 420 | |
| RB2-38 | 38.5±0.8 | 50.8±1.2 | 57.2±1.6 | 9 | 14 | 36 | 500 | |
| RB2-51 | 51.2±0.8 | 63.5±1.2 | 69.8±1.6 | 8 | 13 | 32 | 630 |
Application of wire braid hose:
1. Engineering machinery hydraulic system: hydraulic oil pipes of excavators, loaders, cranes and other equipment, wire braid hose is used to transmit power.
2. Heavy equipment braking system: brake lines of heavy vehicles (need to withstand high pressure and pulse pressure).
3. Petroleum oil field equipment: high-pressure mud pipes and crude oil pipelines of drilling platforms.
4. Petrochemical field: wire braid hose transports fuel, lubricating oil, and some chemical media (oil-resistant and corrosion-resistant rubber materials are required).
5. Industrial manufacturing machine tool equipment: wire braid hose delivers coolant and cutting oil at high pressure.
How to store wire braided hose? What should be paid attention to when storing?
Wire braid hose should be stored in a dry, ventilated and light-proof environment, avoiding direct sunlight, high temperature, oil or acid-base corrosion environment. It is recommended to store wire braid hose at room temperature, wire braid hose avoid long-term heavy pressure or bending to prevent aging or deformation.
About us:
We always adhere to the concept of "high-quality service, reputation first", and are committed to providing customers with efficient, safe and reliable wire braid hydraulic hose, and promoting the coal mining industry to move towards mechanization, intelligence and green development.If you want to know more about the steel wire braided hose， please feel free to consult
