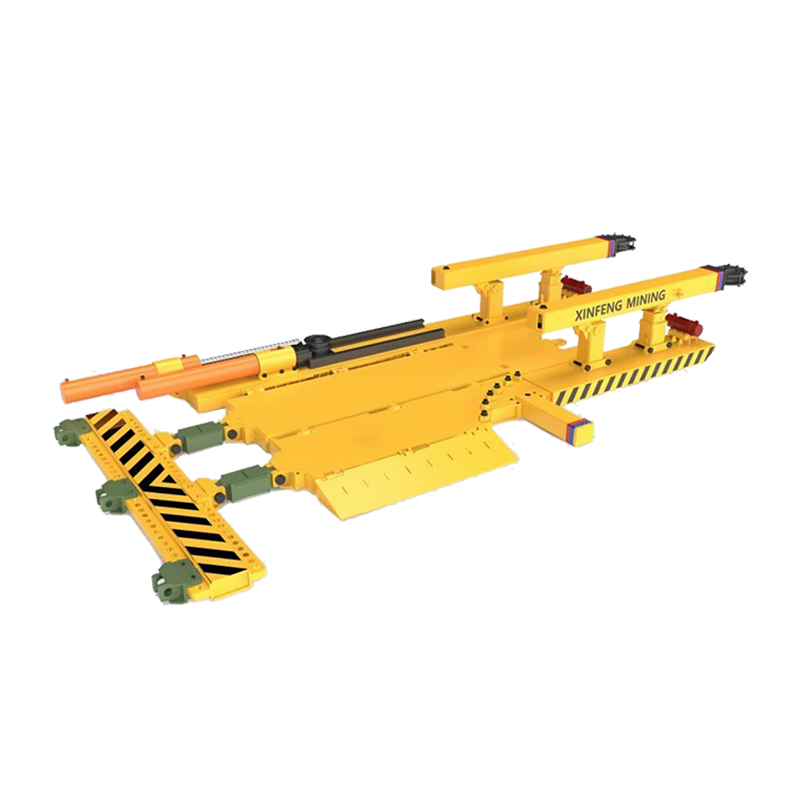

Hydraulic Support Transfer Device (Adjustment Platform)
1. Adjusting device of hydraulic support has multi-directional adjustment capability, which can realize the precise movement and positioning of the support in the tunnel.
2. Adjusting device of hydraulic support adopts high-strength steel and optimized structural design, with excellent bearing capacity.
3. Adjusting device of hydraulic support is compatible with various types of hydraulic supports and is suitable for different working surface conditions.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

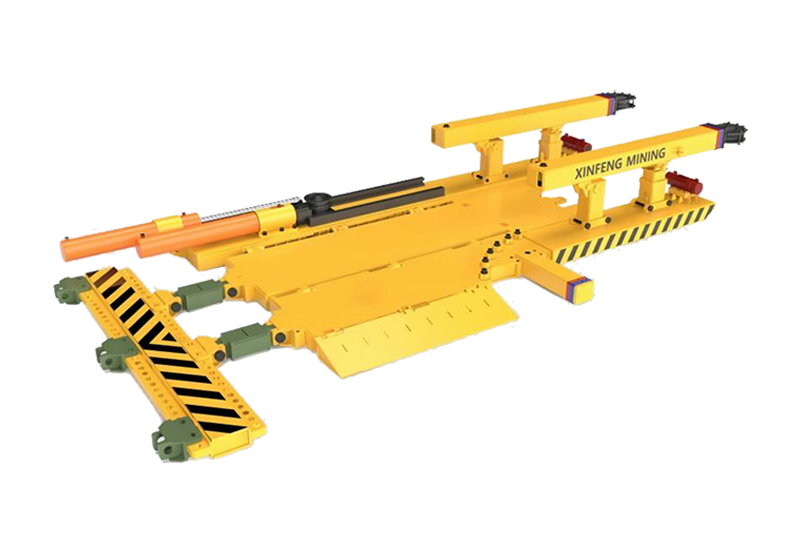

Introduction of Migration and adjustment platform:
Migration and adjustment platform is a special equipment used for extracting, adjusting and loading hydraulic supports from the working surface. The extracted support can be directly loaded onto a flatbed truck to complete the removal work. It abolishes the traditional method of using a winch with a guide pulley to return the micro-support, eliminating the safety hazards caused by the winch wire rope traction. In addition, Migration and adjustment platform can also solve the problem of crushing the support during the withdrawal.
Features of Hydraulic support loading device:
1. Hydraulic support loading device supports manual and remote control operation modes, reducing the labor intensity of workers and improving the accuracy of control.
2. Hydraulic support loading device is equipped with multiple safety protection measures to effectively reduce the risk of equipment failure and personal injury and ensure the safety of underground operations.
3. Hydraulic support loading device adopts modular structure, which is easy to disassemble and assemble, flexible to transport, and suitable for rapid deployment and recovery in small underground spaces.
Parameters of Migration and adjustment platform:
| Item | Technical Parameters | Unit |
| Model | TYH-600(C) | |
| Rated traction | 600 | kN |
| Working dimensions (length x width x height) | 9847x4505x1271 | mm |
| Entry dimensions (length x width x height) | 4100x724x210 | mm |
| Flow rate | 125 | L/min |
| Rated fluid supply pressure | 31.5 | MPa |
| Complete machine weight | 22000 | kg |
Application of Adjusting device of hydraulic support:
1. Installation and withdrawal of hydraulic support: When advancing or replacing the support in the comprehensive mining working face, the Adjusting device of hydraulic support is used to accurately adjust the position and direction of the support to ensure fast and safe installation or removal of the support.
2. Tunnel support: In the construction of large tunnels (such as subways and water conservancy tunnels), it is used to adjust the angle and position of shield support or temporary hydraulic support.
3. Support system maintenance: In deep well mining or mines with unstable roof, it is used to move or adjust the support bracket to ensure the safety of operation.
4. Roof fall accident handling: Quickly adjust the position of the rescue bracket to support the collapsed area and provide a safe space for rescue.
About us:

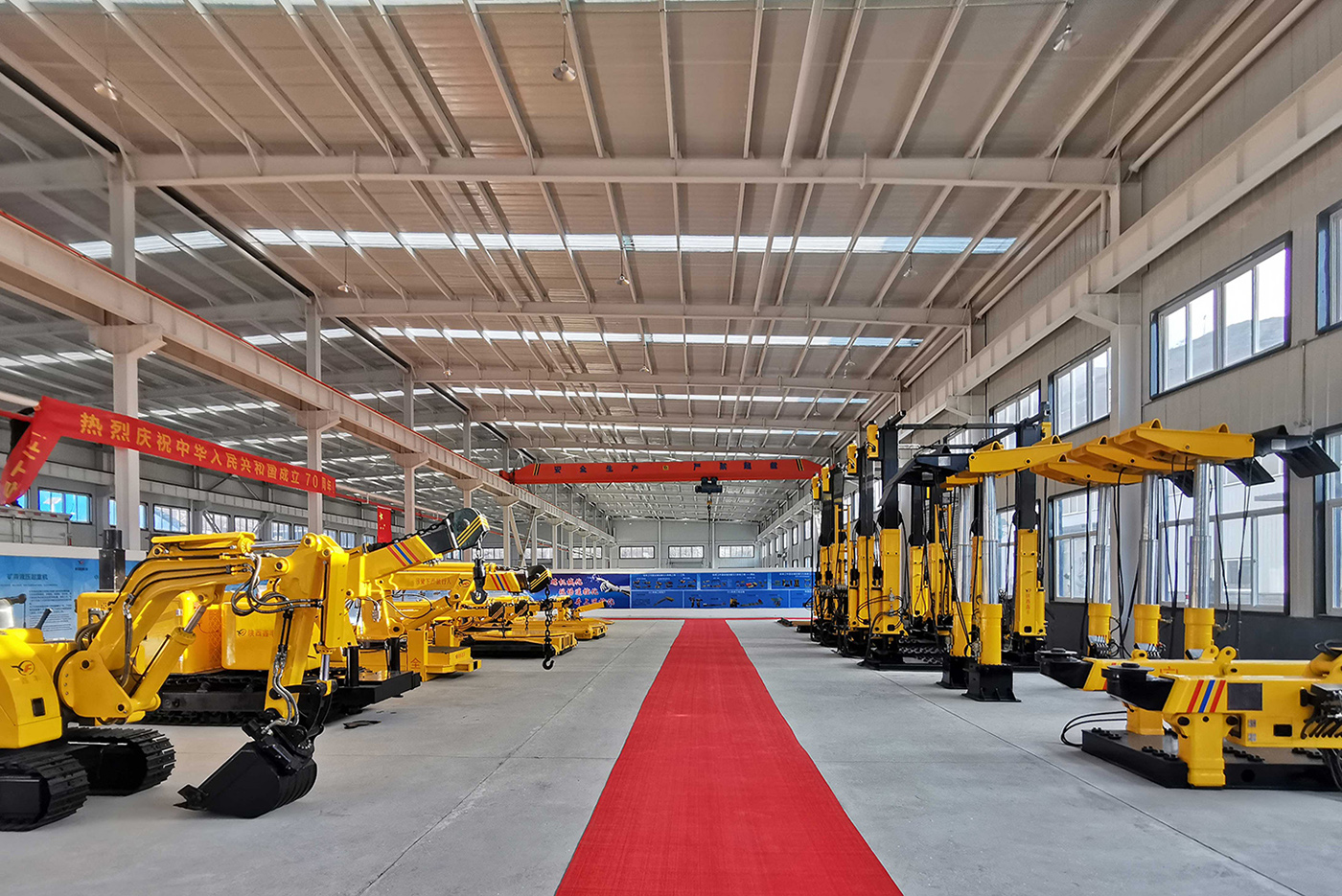

Liaoning Xinfeng Mining (Group) Co., Ltd. was established in November 2004 and is located in the South Development Zone of Diaobingshan City, Tieling City, Liaoning Province. The company's main business scope: Manufacturing and sales of equipment for installation and withdrawal of coal mine comprehensive mining working faces, such as mining hydraulic cranes, hydraulic support installation forklifts, hydraulic support withdrawal forklifts and coal mine special hydraulic excavators, steel rail sleepers, single-side cutting top brackets, sliding advance support brackets and other equipment. The company insists on using technology to bring changes to customers and realize mechanization, intelligence, and gamification of labor.
