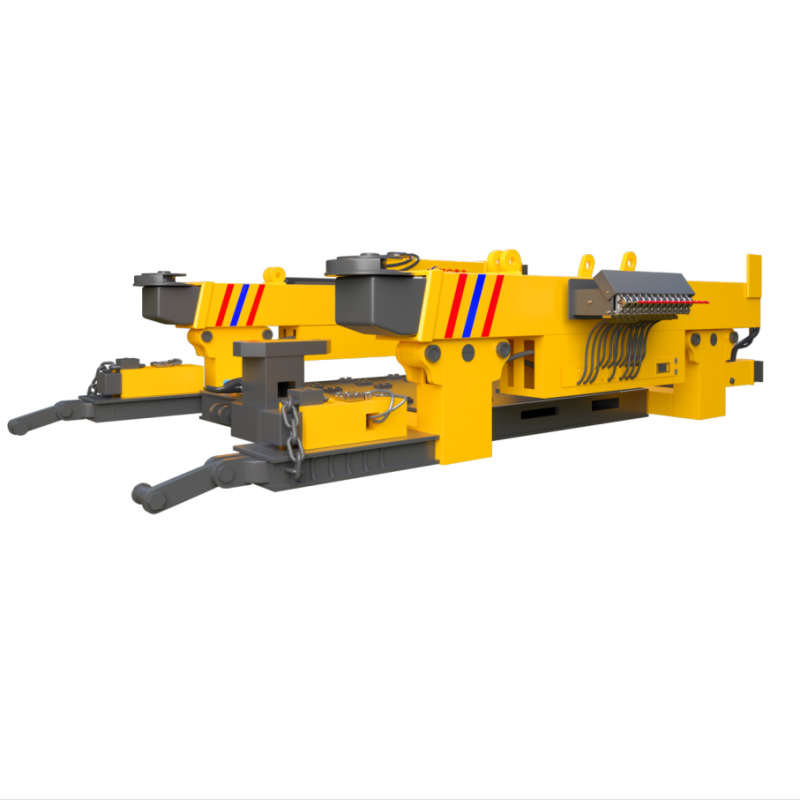

Adjusting Device Of Hydraulic Support(Unloading Mechanism)
1. The underground support unloading mechanism is reasonably designed and compact in structure, and can operate stably in a small space.
2. The underground support unloading mechanism realizes fast and efficient docking and transfer between the hydraulic support and the flatbed truck and the installation forklift.
3. The underground support unloading mechanism adopts a modular structure, which is convenient for transportation and quick for on-site installation.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of underground support unloading mechanism:
Hydraulic support mining unloading equipment is a kind of equipment specially used for installation at the intersection of the return airway and the working face chute, which is used to transfer the hydraulic support from the flatbed truck to the hydraulic support transfer device (installation forklift). The use of the hydraulic support transfer device (unloading mechanism) has changed the history of using a winch to pull the hydraulic support vehicle to make a 90° turn, eliminating the safety hazards of derailment and rollover of the transport vehicle at the corner.
Main technical parameters of hydraulic support mining underground unloading equipment:
Item | Technical Parameter | Unit |
Model | TYL-600 | |
Rated Tractive Force | 600 | kN |
Working Dimensions (Length×Width×Height) | 5900×3000×1200 | mm |
Dimensions for Entry into the Mine | 3800×1400×1200 | mm |
Rated Hydraulic Supply Pressure | 31.5 | Mpa |
Telescopic Amount of the Traction Arm | 2100 | mm |
Maximum Load - bearing Capacity | 60 | t |
Telescopic Amount of the Leg Lifting and Lowering Device | 220 | mm |
Telescopic Amount of the Horizontal Telescopic Device | 450 | mm |
Overall Machine Weight | 5700 | kg |
Features of mining underground unloading equipment:
1. Hydraulic support mining underground unloading equipment Two sets of lifting arms are installed on the upper part of the beams on both sides of the device, which can complete modular track laying, middle trough installation and withdrawal and other auxiliary operations, and chains can tighten the support.
2. Hydraulic support mining unloading equipment has a simple structure, manual operation and wireless remote control (optional), reliable operation, time-saving and labor-saving;
3. Hydraulic support mining unloading equipment replaces the traditional working method of manual dragging operation, reduces the labor intensity of workers, and achieves fast, safe and efficient.
Application of hydraulic mining unloading equipment:
1. Initial mining and installation of comprehensive mining working face: Mining unloading equipment unload the hydraulic support transported to the working face from the flatbed truck or special transport vehicle, and place it stably in the installation position.
2. Withdrawal of the working face at the end of mining: During the withdrawal of the support, unload the support from the transport vehicle and adjust it to a suitable position for subsequent disassembly or lifting transportation.
3. Bracket replacement and repair: When a bracket is damaged, mining Underground Unloading Equipment is used to remove the new bracket from the transport equipment and replace the old bracket.
Quality service, reputation first:
The company's main business scope: manufacturing and sales of mining hydraulic cranes, hydraulic support installation forklifts, hydraulic support retraction forklifts, coal mine hydraulic excavators, sleepers, single-side top cutting supports, sliding advance supports and other coal mine comprehensive mining working face installation and removal equipment; mining machinery maintenance; import and export of goods and technology; mining equipment design, research and development, and leasing; providing installation and related technical services for coal mining machines, hydraulic supports, conveyors, and electromechanical equipment installation; undertaking shaft and tunnel labor services and technical transformation projects, etc. If you want to know more about the products, please contact us!
