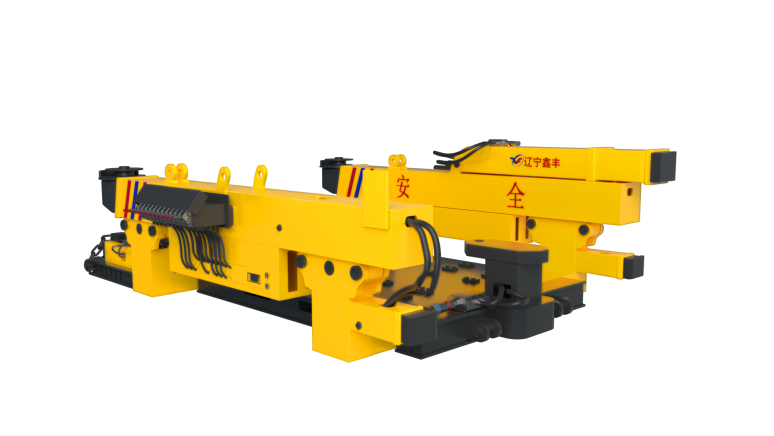

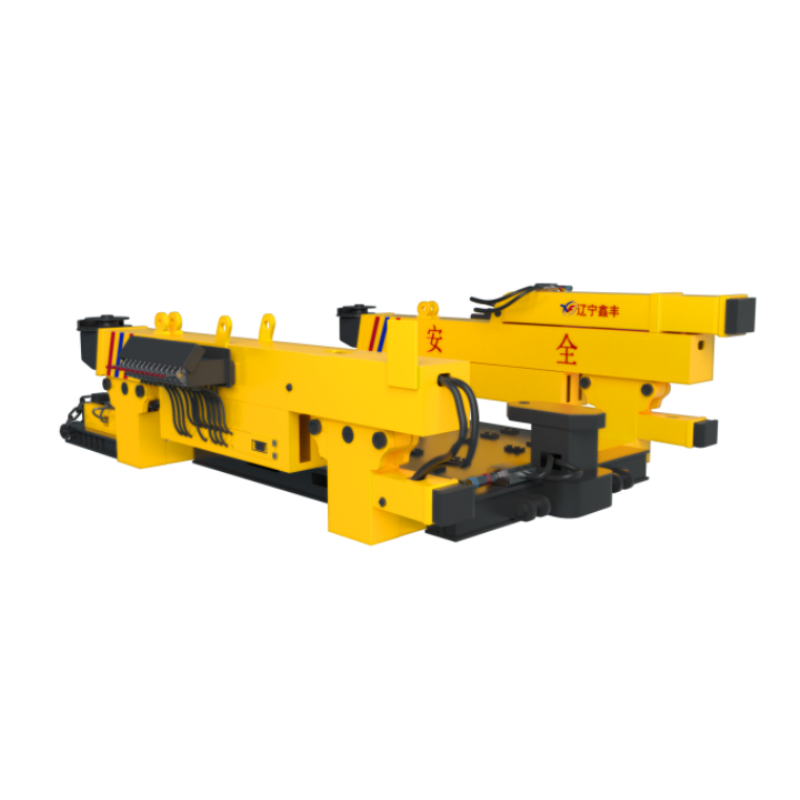

Adjusting Device Of Hydraulic Support(Transfer And Loading Platform)
1. The hydraulic support transfer and loading platform adopts a structural design, which can realize the smooth direction adjustment and transfer of the hydraulic support at the 90° turn, improving transportation safety.
2. The hydraulic support transfer and loading platform is easy to operate, saves time, and effectively improves the efficiency of hydraulic support replacement and transfer on the working face.
3. The hydraulic support transfer and loading platform has a modular structure and is suitable for various types of hydraulic supports and flatbed trucks.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of mine support transfer equipment:
The hydraulic support transfer and loading platform is installed at the intersection of the return air lane and the working face cut-out. It is a device dedicated to transferring the hydraulic support from the transport transfer platform to the flatbed truck. The mine support transfer equipment has changed the history of using a winch to pull the hydraulic support vehicle for 90-degree turns and direction adjustments, eliminating the safety hazards of derailment and rollover of the transport vehicle at the bend.
Advantages of mine support transfer equipment:
1. The hydraulic support mine support transfer equipment can improve transportation efficiency and reduce the labor difficulty of workers.
2. The hydraulic support adjustment mine loading and unloading platform realizes the automation and mechanization of the hydraulic support transportation method.
3. Hydraulic support mine loading and unloading platform reduces the safety risks brought by traditional traction methods.
4. Hydraulic support mine loading and unloading platform effectively ensures the stability and safety of the support and transportation equipment during the bend transfer process.
Data of mine loading and unloading platform:
Item | Technical Parameter | Unit |
Model | TYH-600 | |
Rated Traction Force | 600 | kN |
Working Dimensions (Length × Width × Height) | 5200×3600×1200 | mm |
Dimensions for Entering the Mine | 3700×1400×1200 | mm |
Track Gauge | 600/900 | mm |
Rated Hydraulic Supply Pressure | 31.5 | Mpa |
Telescopic Amount of Traction Arm | 1500 | mm |
Maximum Load - bearing Capacity | 60 | t |
| Telescopic Amount of Leg Lifting and Lowering Device | 220 | mm |
Telescopic Amount of Horizontal Telescopic Device | 450 | mm |
Overall Machine Weight | 5500 | kg |
Precautions during use of transfer and loading platform:
1. Operators must undergo professional training and be familiar with the equipment structure and operation process. They can only operate independently after obtaining a certificate.
2. Strictly adjust the support according to the rated load of the equipment to avoid damage to the equipment structure or failure of the hydraulic system.
3. Before each operation, it is necessary to check whether the hydraulic system, electronic control system, and mechanical connection components are intact to ensure that there are no abnormal conditions such as leakage, looseness, and jamming.
4. During the adjustment or sliding of the support, it is strictly forbidden for any person to stand or approach the equipment platform and the support vehicle to prevent accidental injury or squeezing accidents.
5. The adjustment action should be carried out slowly and smoothly. It is forbidden to turn sharply or stop suddenly to prevent hydraulic shock from causing damage to the equipment or overturning of the support.
6. Before the direction of the support is adjusted, the locking device must not be released in advance to prevent the support from sliding and deflecting.
