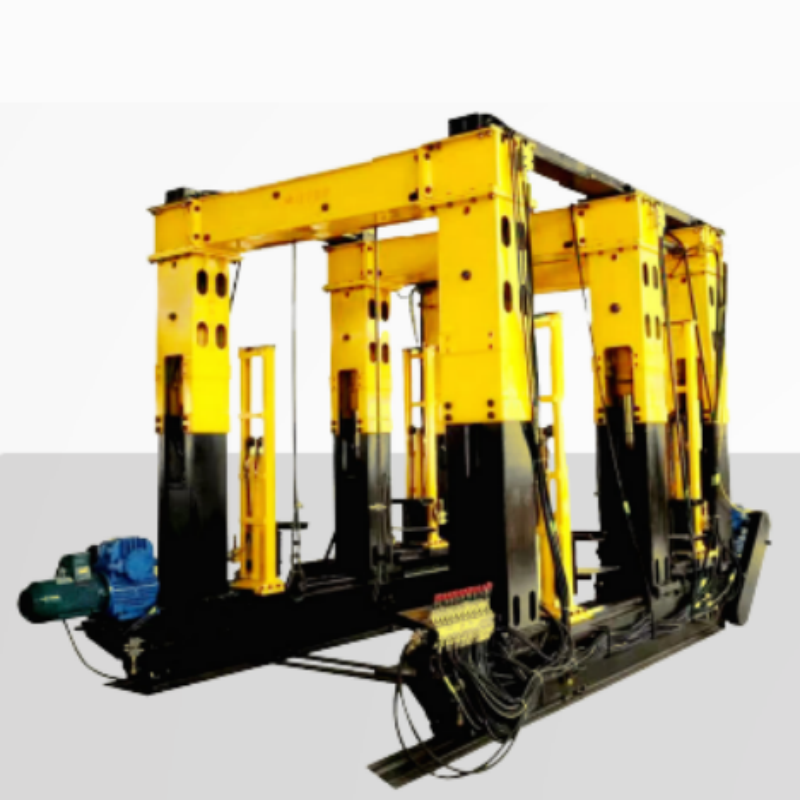

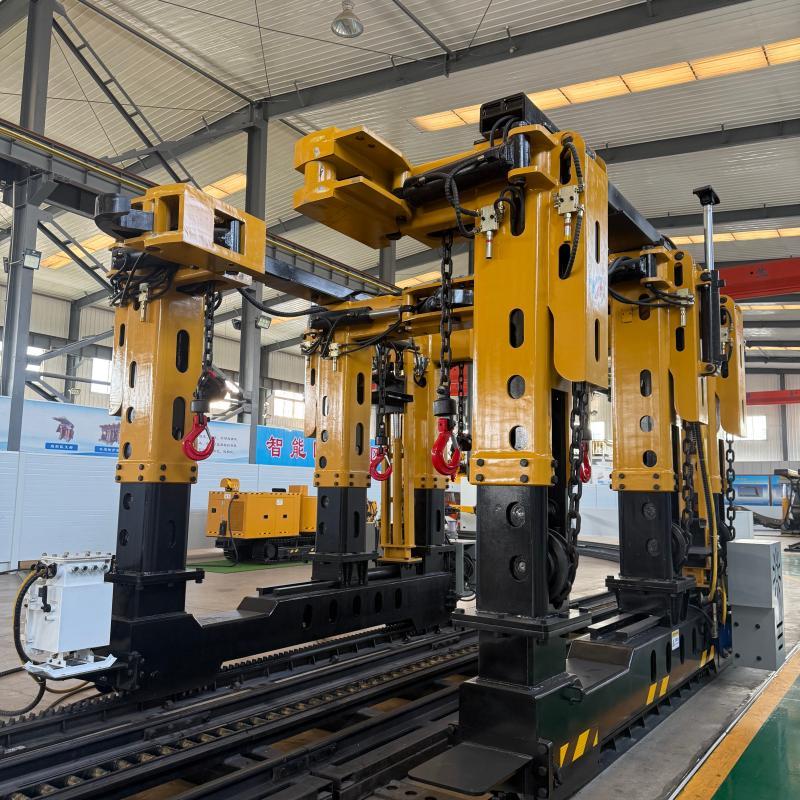

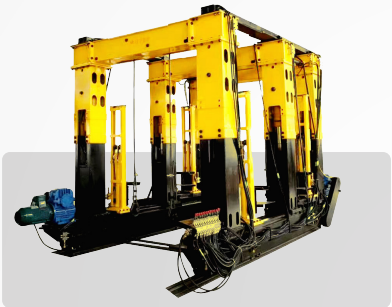

Mine Hydraulic Frame Lifting Device
1. Mine hydraulic frame lifting device adopts modular structure design, which can be assembled and disassembled quickly.
2. Mine hydraulic frame lifting device adopts high-performance pressure system, which has stable lifting, quick response and strong lifting capacity.
3. Mine hydraulic frame lifting device has two methods of manual control and remote control, which can operate remotely in dangerous environments and improve operation safety.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of mine hydraulic frame lifting device:
Mine hydraulic underground lifting equipment is a special equipment used for installing and disassembling brackets. It is installed in a special tunnel chamber within 50m from the working surface. Mine hydraulic underground lifting equipment can be operated manually or remotely, running along a special track to complete the installation and disassembly of the bracket. Underground lifting equipment is easy to use, efficient and labor-saving, which reduces heavy physical labor. Compared with the traditional manual installation and disassembly of brackets, the efficiency is more than three times higher.
Key points of underground mine lifts:
Purpose: Underground mine lifts are used to install and disassemble brackets.
Performance: Underground mine lifts use electric motors with reducers to drive the equipment along special tracks through chains. It can be operated manually or remotely.
Features: Underground mine lifts are mobile assembly rooms that replace ordinary assembly rooms and manual cranes.
Data of mining hydraulic underground lifting equipment:
Item | Technical Parameter | Unit |
Model | KYX-15×4 | |
Working Dimensions (Length×Width×Height) | 5700X4200X3558/3995/4430 | mm |
Maximum Demount-able Dimensions (Length×Width×Height) | 4280×510×825 | mm |
Maximum Lifting Height | 3450 | mm |
Track Gauge | 2870 | mm |
Rated Lifting Weight | 15×4 | t |
Rated Hydraulic Supply Pressure | 31.5 | Mpa |
Overall Machine Weight | 26200 | kg |
Operating Speed | 18 | m/min |
Travel Mode | Electric Gear - rack Travel |
Applications of Hydraulic underground mine lifts:
1. Comprehensive mining face: assembly and positioning of hydraulic supports; lifting and maintenance of coal mining machines and scraper conveyors.
2. Excavation tunnels: replacement of large parts of shield machines; lifting and lowering operations of anchor drilling rigs.
3. Underground material transfer station: loading and unloading of large equipment (such as transformers and pumping stations).
4. Accident handling: rapid lifting of heavy equipment in collapsed tunnels and deployment of rescue equipment.
FAQ：
1. Why choose us?
We are a high-tech modern enterprise with a 20-year history, integrating independent research and development, intelligent manufacturing, equipment leasing, engineering services and technical support.
2. What are the advantages of our lifting equipment?
Our mining hydraulic cranes, installation forklifts and retraction forklifts are equipped with self-developed hydraulic systems and high-strength lifting devices, with advantages such as high load, stable operation and convenient operation. They are particularly suitable for underground environment operations and improve loading and retrieval efficiency and safety.
3. Is your equipment transportation packaging reliable?
Yes. We use a customized three-layer packaging process that is earthquake-resistant, moisture-proof and anti-corrosive. The equipment is intact during transportation, especially for the complex shapes and precision parts of mining equipment. Exclusive protection is provided, so customers can put the equipment into efficient use as soon as they receive it.
