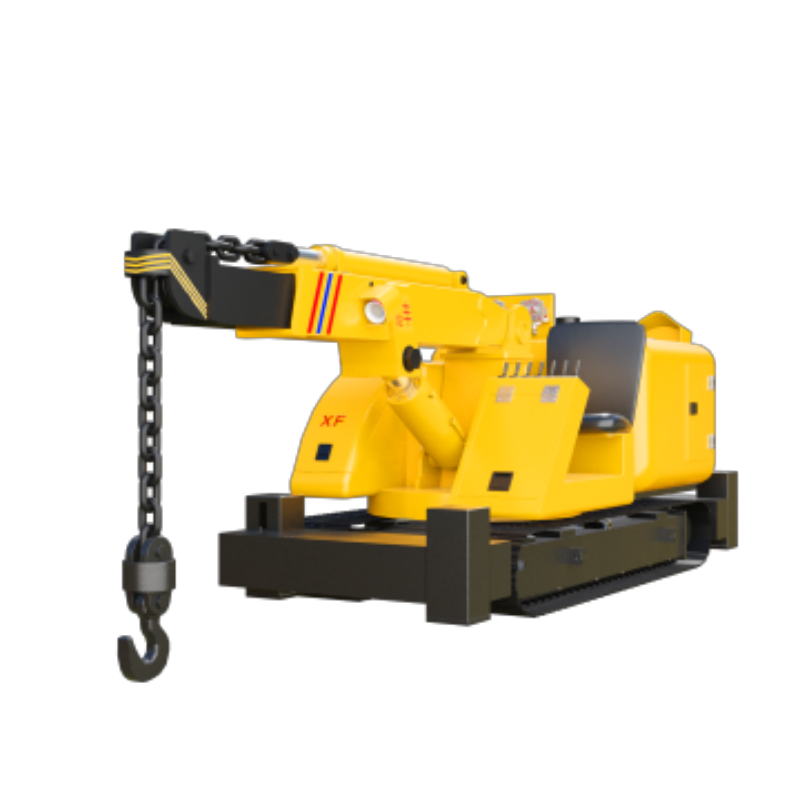

Mine Hydraulic Boom Frame Lifting Device
1. Mine crawler crane is equipped with a strong power hydraulic system, which is suitable for the requirements of strength and precision of underground lifting.
2. The arm structure of mine crawler crane can realize multi-degree-of-freedom movement and can flexibly adapt to different angles and heights.
3. Mine crawler crane is equipped with widened anti-skid tracks, which has good obstacle crossing ability and ground adhesion performance.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

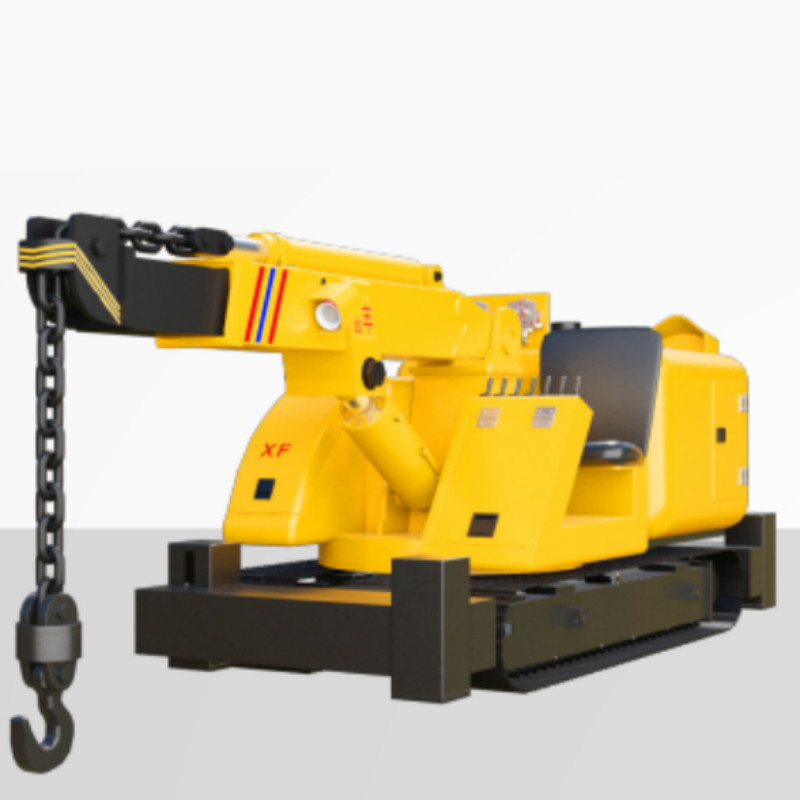

Introduction of mine crawler crane:

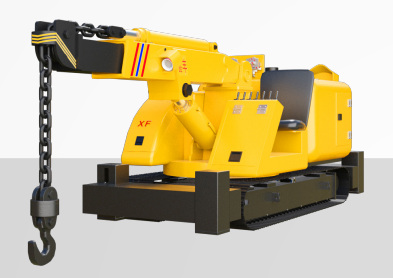

Mine hydraulic crane is a kind of equipment loading and unloading operation for underground mines, which can realize the lifting and transportation of objects around the equipment. Mine hydraulic crane has a small size and can be operated manually or remotely, which is easy and flexible to operate. Since there is no need for manual hand winch, it significantly improves work efficiency, reduces the heavy physical labor of workers, and ensures the safety of construction personnel.
Features of mine crawler crane:
1. Mine hydraulic crane has a small size, easy and flexible operation. It has strong lifting capacity, safety and reliability, and is a technological revolution in underground installation and removal.
2. Mine hydraulic crane is used for underground mine equipment installation and removal operations.
3. The power system of crawler crane consists of electric motor and hydraulic system. It can rotate horizontally 180° or 360° and can be operated manually or remotely.
Main technical parameters of mining crawler crane：
VoltageItem | Technical Parameter | Unit |
Model | BYX-15/ BYX-25 | |
Operating Dimensions | 5450×2350×2120 5450×2350×2300 | mm |
Dimensions for Mine Entry (Length × Width × Height) | 4280×1350×2120 4280×1350×2300 | mm |
Maximum Lifting Height | 3000 | mm |
Maximum Rated Lifting Weight | 15/25 | t |
Rated Hydraulic Fluid Supply Pressure | 25 | Mpa |
Maximum Slewing Angle | ±90 | ° |
Slewing Speed | 0.05 | Rad/s |
Grade ability Angle | 10 | ° |
Noise | 90 | dB(A) |
Maximum Luffing Angle | 30 | ° |
| Traveling Speed | 15 | m/min |
Voltage | 660/1140 | V |
Operation Mode | Manual /Remote Control | |
Overall Machine Weight | 12000/13000 | kg |
Application of mining crawler crane:
1. Underground coal mine: installation, disassembly and maintenance of mine hydraulic crane equipment; replacement of hand chain hoist for material lifting; auxiliary transportation and handling in narrow space.
2. Metal mine: replacement and maintenance of underground equipment of mine hydraulic crane; handling of heavy facilities such as crushing station, belt conveyor and pump station.
3. Tunnel construction: handling of shield equipment parts of hydraulic boom crane for mining; installation and lifting of pipe segments and support equipment.
4. Emergency repair: rapid deployment of crawler cranein mine rescue and emergency equipment replacement.
Why choose us?
1. Our independently developed hydraulic boom crane for mining is made of precision processing and thickened materials. It has greater load-bearing capacity and smoother operating performance, and can maintain long-term and stable operation in coal mine environment.
2. Each hydraulic boom crane for mining is packaged in a standardized manner before leaving the factory, and adopts a three-layer protection design that is shockproof, pressure-resistant, and moisture-resistant. We not only manufacture hydraulic boom cranes for mining, but also take customer experience into consideration in every detail.
3. All hydraulic boom cranes for mining have passed multiple factory inspection processes, and each hydraulic boom crane for mining delivered to customers can be installed and used immediately, and is stable and reliable.
