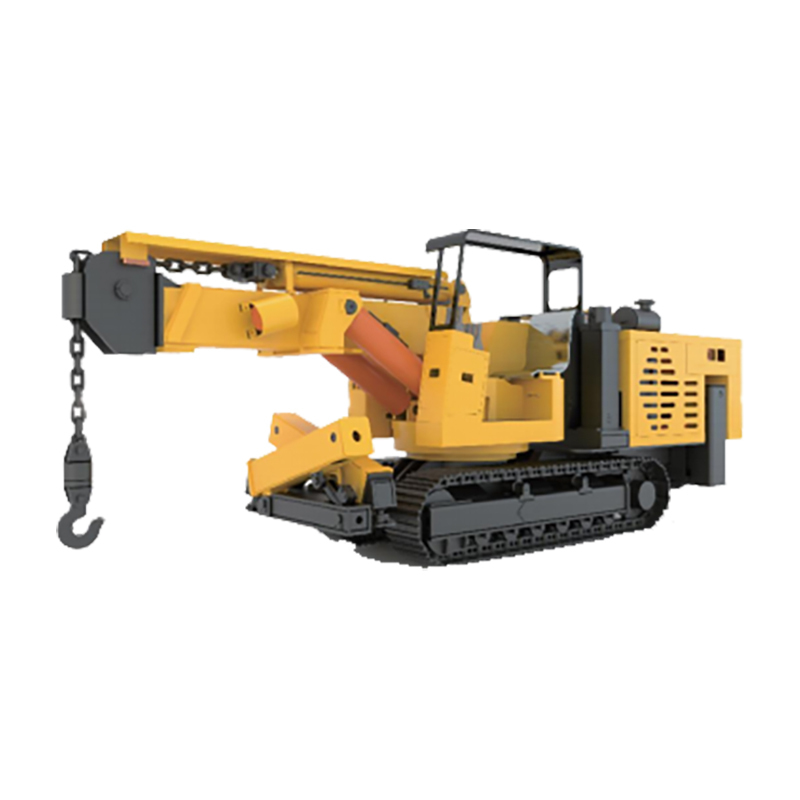

Mine Hydraulic Boom Lifting Device (diesel)
1. Boom lifting device uses a high-performance diesel engine with superior power output, which can adapt to mine environments without electricity or unstable electricity.
2. The Boom lifting device arm can be extended and rotated at multiple angles to adapt to multiple working conditions.
3. Boom lifting device is made of high-strength materials, with a solid structure and strong impact resistance. Types of boom lift is suitable for complex mine operating environments.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of Boom lift:
Boom lifting device is a special equipment designed for underground operations in coal mines, mainly used for the installation, withdrawal and transportation of fully mechanized mining working face equipment. Boom lifting device has the characteristics of compact structure, flexible operation, safety and reliability. Boom lifting device can improve work efficiency, reduce labor intensity, and improve work safety.
Features of Boom lift:
1. Types of boom lift is equipped with advanced hydraulic system, stable operation, precise movement and high reliability.
2. Types of boom lift is equipped with multiple safety systems to ensure construction safety.
3. The modular design of Types of boom lift is easy to maintain and suitable for quick start.
Parameters of Types of boom lift:
| Item | Technical Parameters | Unit | |
| Model | BYX-25C | BYX-15C | kW |
| Diesel engine rated power | 85 | r/min | |
| Speed | 2200 | Mpa | |
| Rated working pressure | 25 | L/min | |
| Rated working flow | 81.4x2 | t | |
| Maximum rated lifting capacity | 25 | 15 | mm |
| Maximum lifting height of the longest main arm | 3000 | ° | |
| Slewing angle range | ±80° | mm | |
| Overall dimensions (length x width x height) Working state | 6150x2350x4700 | 5800x2350x4600 | mm |
| Entry into the well dimensions (length x width x height) Recovery state | 5830x1350x2300 | 5530x1350x2250 | mm |
| Slewing speed | 0.67 | r/min | |
| Maximum stable driving speed | 15 | m/min | |
| Climbing angle | 15 | ° | |
| Vehicle gross weight | 14000 | 13000 | Kg |
Applications of Types of boom lift:
1. Ore/waste loading and unloading: used for excavation, loading and short-distance transportation of ore, gangue and waste in open-pit mines or underground mines.
2. Topsoil stripping: remove the covering layer (earth, rock) to prepare for mining.
3. Slope trimming: through the flexible adjustment of the hydraulic arm, the slope of the mine is trimmed to prevent collapse.
4. Tunnel excavation assistance: clean up the gravel after blasting and load it onto the mine car or conveyor.
5. Support material handling: hoist support materials such as steel beams and anchors to speed up the progress of tunnel support.
