Gear Type Coal Mine Rack Car
1. The rack drive of coal mine grab truck is transmitted through mechanical meshing, and the force is more direct and stable.
2. The structure of coal mine grab truck is relatively simple, without complex hydraulic system, and maintenance is more convenient.
3. Coal mine grab truck is suitable for narrow space operation, with compact overall structure, suitable for underground space in coal mines.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

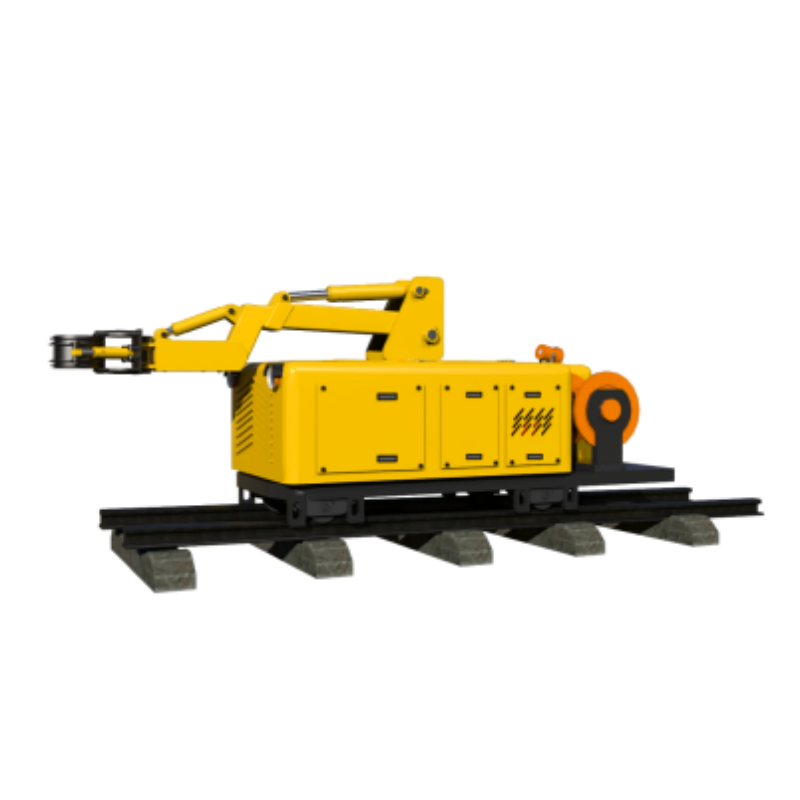

Introduction of rack type coal mine grab truck:
Special equipment for coal mines Rack type grab truck is a handling equipment for single-column advance bracket. It can travel on modular crawler and use mechanical gripper to carry single-column advance bracket and modular crawler. Special equipment for coal mines grab truck (rack type) is a handling equipment for single-column advance bracket, which can travel on modular track and use mechanical gripper to carry single-column advance bracket and modular track.
System description of rack type coal mine grab truck:
1. Drive mode: Special equipment for coal mines crawler transporter uses the existing power supply of the working face as the power source, and the drive system consists of electric motor and hydraulic system.
2. Control mode: manual and remote control.
3. Features: Special equipment for coal mines can travel in tunnels with a slope of ≤13°. Special equipment for coal mines uses a manipulator to carry a single-column advance support. In addition, it can also replace the bucket for excavation on both sides and the bottom of the tunnel.
Main technical parameters of coal mine grab car：
Item | Technical Parameter | Unit |
Operating Dimensions (Length×Width×Height) | 4500×1365×1725 | mm |
Snatching Mass | 5 | t |
Track Gauge | 600/900 | mm |
Applicable Rail Type | 30/38 | kg/m |
Motor Power | 30 | kW |
Traveling Speed | 0~2.7 | Km/h |
Climbing Angle | ≤25 | ° |
Noise Level | ≤85 | dB（A） |
Voltage | 660/114 | V |
Total Weight of the Machine | 7000 | kg |
Application of coal mine grab car:
1. Coal mine comprehensive mining face: Coal mine grab car can be used to transport single hydraulic props, front exploration support equipment, etc.
2. Excavation face: Coal mine grab car assist in the tr.ansportation of excavation equipment and tunnel expansion and repair.
3. Tunnel maintenance: transport rails, pipes, cables and other engineering materials.
4. Complex environment: Coal mine grab car replace manual entry into dangerous areas to grab and withdraw equipment.
About us:

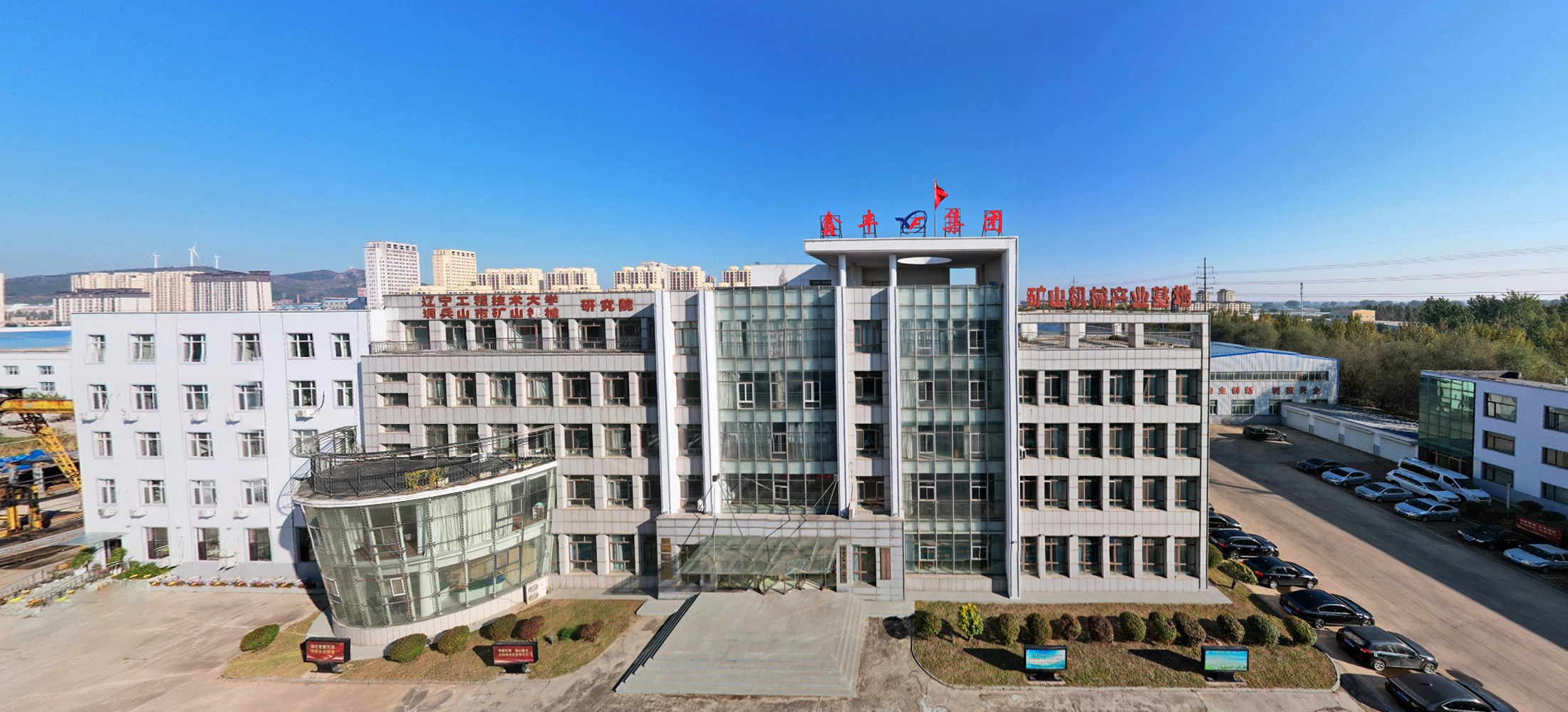

Liaoning Xinfeng Mining (Group) Co., Ltd. was established in November 2004 and is located in the South Development Zone of Diaobingshan, Tieling City, Liaoning Province. The company has a registered capital of 320 million yuan, covers an area of 105,000 square meters, a plant area of 36,000 square meters, and 1,160 employees. It is a high-tech modern enterprise integrating independent research and development, equipment manufacturing, engineering services, equipment leasing, and sales services. The company insists on using technology to bring changes to customers and realize mechanization, intelligence, and gamification of labor.
