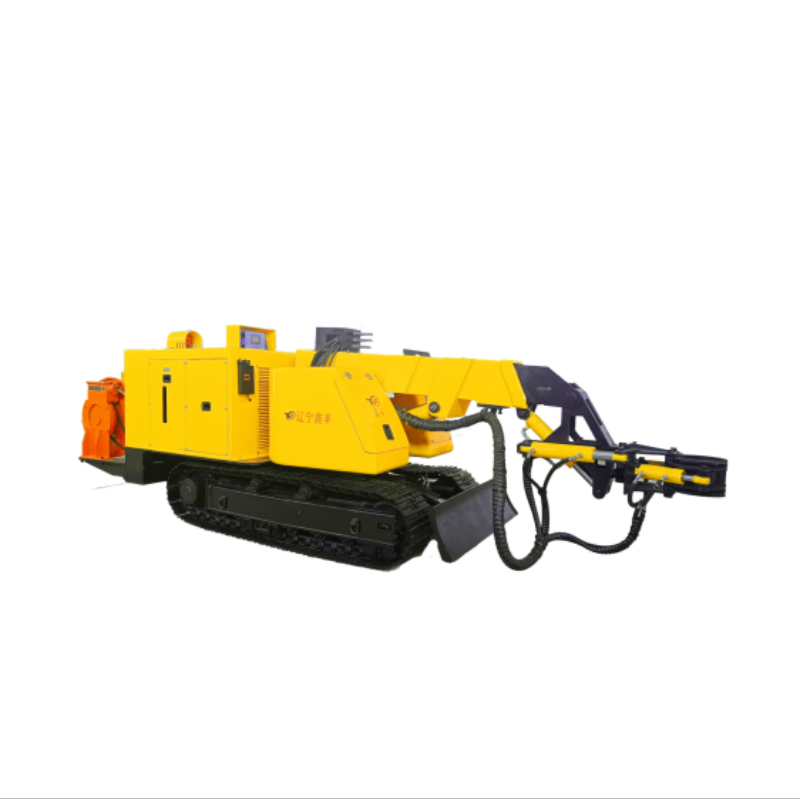

Crawler Type Coal Mine Grab Vehicle
1. The crawler grab truck for coal mine is equipped with sufficient power and strong escape ability, which can fully meet the use under large slope conditions.
2. The crawler grab truck for coal mine adopts rubber tracks, which has strong grip, fast speed and protects hardened road surface.
3. The grab arm of the diesel crawler grab truck for coal mine is flexible, saving time and labor, safe and efficient, and easy to operate.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

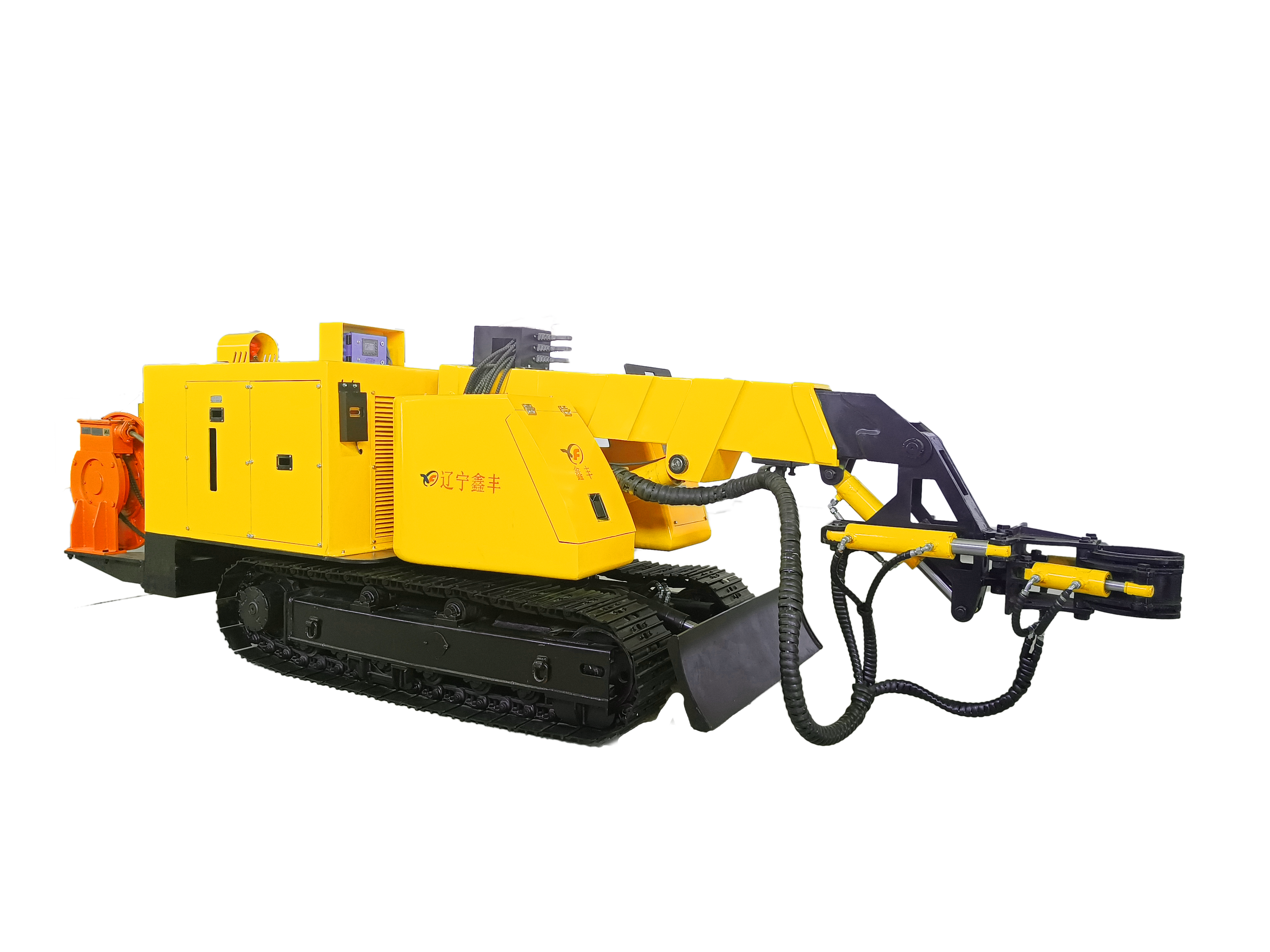

Introduction of crawler grab truck for coal mine:
The Coal mine rack grabber is an auxiliary transportation equipment powered by an explosion-proof diesel engine. It is mainly used for engineering transportation and hoisting of parts and bulk parts in tunnels such as coal mines and metal mines. The Coal mine rack grabber has a compact structure, strong maneuverability, large traction, fast driving speed, high transportation efficiency, modular design of the whole machine, and more convenient maintenance. Excavation and crushing functions are optional. The functions of the Coal mine rack grabber include action grabbing, action lifting, action lifting, action leaning and other operations.
Coal mine advantages of crawler grab truck:
1. Equipped with pipe grab function, coal mine rack grabber can meet the underground pipeline installation and maintenance work.
2.Coal mine rack grabber can single-side single handle driving, bidirectional control, convenient and flexible, safer for the driver.
3. Wide range of walking speed, coal mine rack grabber meeting the needs of different vehicle speeds on multiple sections of roads.
System description of diesel crawler grab truck for coal mine:
Crawler grab machine for coal mine is used to transport single-column advance support equipment. Crawler grab machine for coal mine can travel in a chute with a slope of no more than 13 degrees. Crawler grab machine for coal mine uses a mechanical grab bucket to grab a single-column advance support, and can also replace the bucket for chute widening, bottom cutting and other operations.
Drive mode: Crawler grab machine for coal mine uses the existing power supply of the working face as the power source, and the drive system consists of an electric motor and a hydraulic system.
Control mode: manual control, remote control.
Data of crawler grab truck：
Item | Technical Parameter | Unit |
Model | MZD - 30/2.0L | |
Lifting Angle of the Snatch Arm | 39±1 | ° |
Minimum Overall Dimensions (Length×Width×Height) | 3370×1350×1820 | mm |
Maximum Overall Dimensions (Length×Width×Height) | 6090×1350×2300 | mm |
Minimum Front Turning Radius | 280±30 | mm |
Traveling Speed | 0 - 21 | km/h |
Motor Power | 30 | kW |
Rotating Angle of the Gripper | 840±1 | m/min |
Total Length of the Crawler | 2690 | mm |
Width of the Crawler | 350 | mm |
Gauge of the Crawler | 1000 | mm |
Rated Hydraulic Supply Pressure | 24 | MPa |
| Maximum Applicable Slope | 13 | |
Operating Voltage | 660/1140 | V |
Extension Length of the Telescopic Arm | 1400 | mm |
Handling Weight | ≤2 | t |
Total Weight of the Machine | 5500 | kg |
Application of diesel crawler grab truck for coal mine:
1. Coal mining: coal bunker cleaning, hydraulic support transfer.
2. Metal mine excavation: ore loading, roadway support material lifting.
3. Inclined roadway transportation: equipment handling and bulk ore loading and unloading on slopes below 25°.
4. Accident handling: clearing obstacles in the collapse area and quickly lifting damaged equipment.
5. Water seepage accident: underwater material salvage.

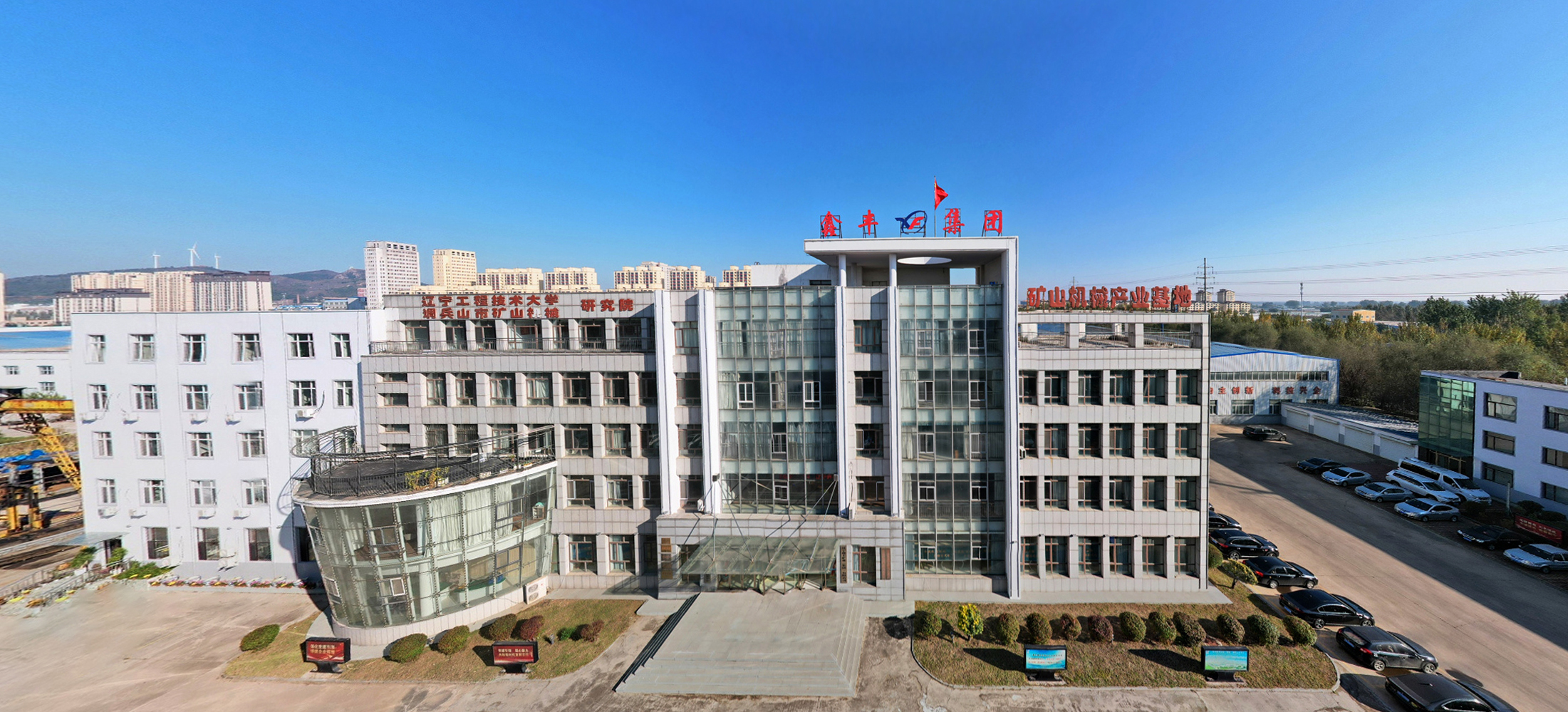

About us:
Liaoning Xinfeng Mining (Group) Co., Ltd. was established in November 2004. The company mainly develops and manufactures mechanized and intelligent "comprehensive mining installation and withdrawal equipment-321 installation and withdrawal system" and "comprehensive mining two-way advance support-211 advance support system", filling the gap in the coal mining industry. We insist on starting from parts, manufacturing high-quality products to give back to the society and meet user requirements to the greatest extent possible.
