Coal Mining Yard
1. Coal mining track parking yard can improve vehicle dispatching ability and work efficiency.
2. Coal mining track parking yard can switch freely between left and right directions, is flexible to operate, and can adapt to various modes of transportation.
3. Reasonable layout of coal mining track parking yard helps reduce transportation conflicts and accidents.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

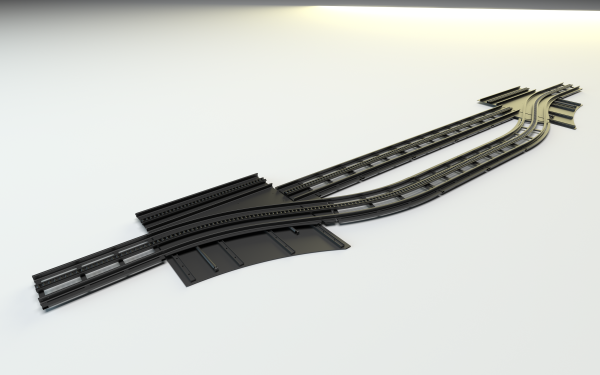

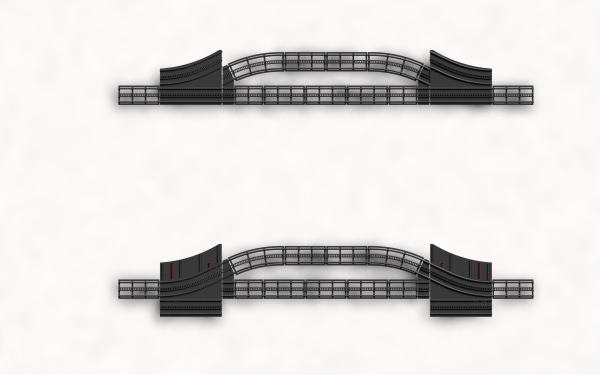

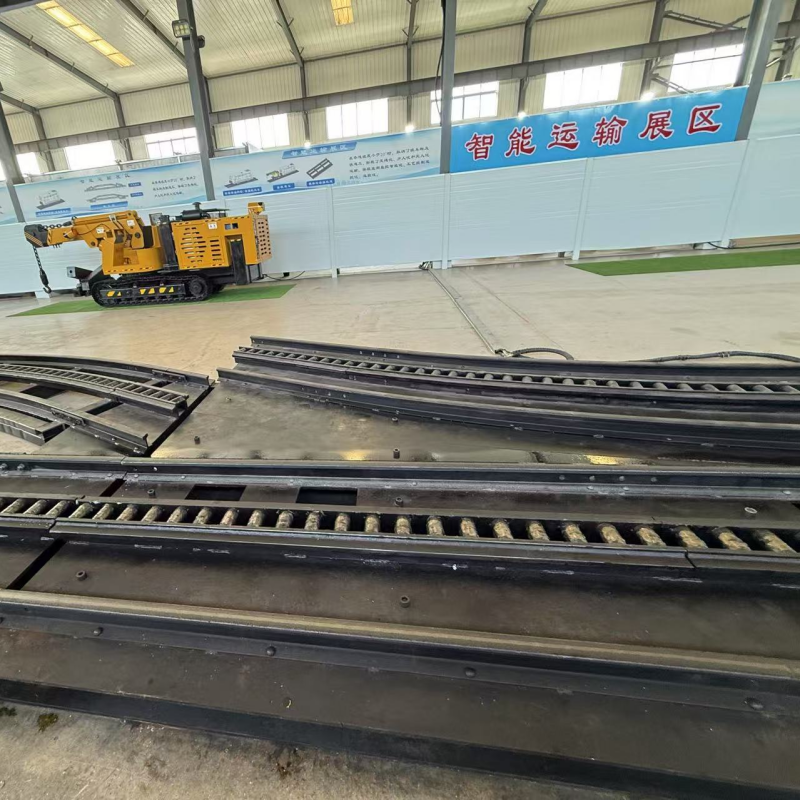

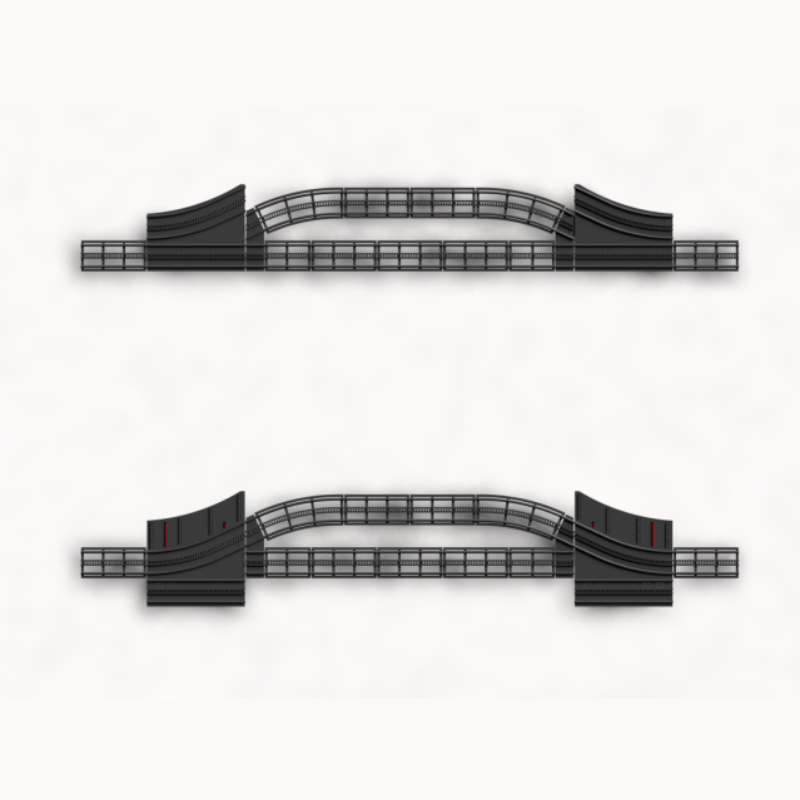

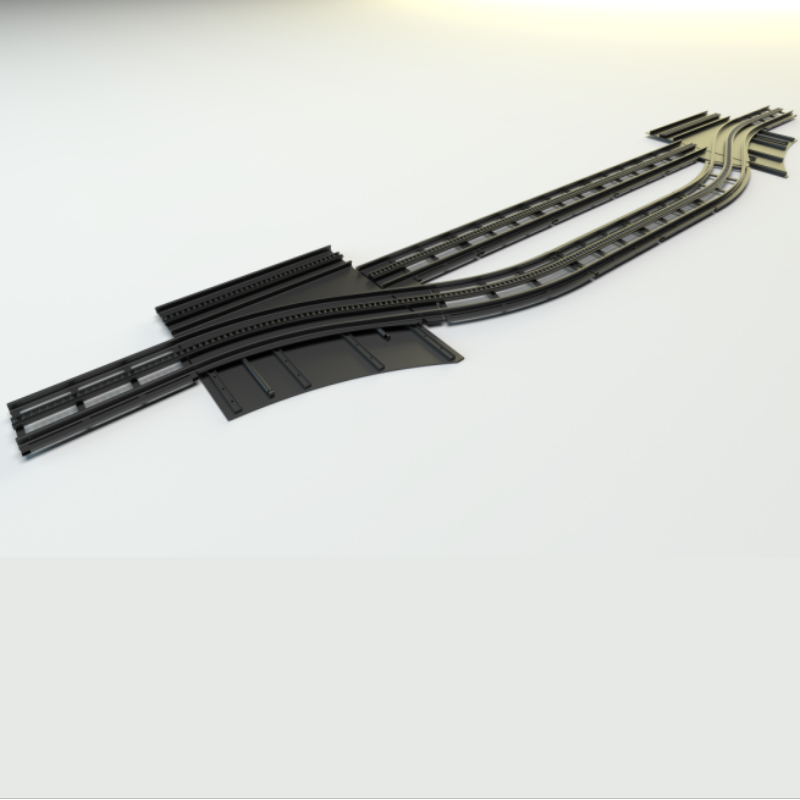

Introduction of coal mining track parking yard:

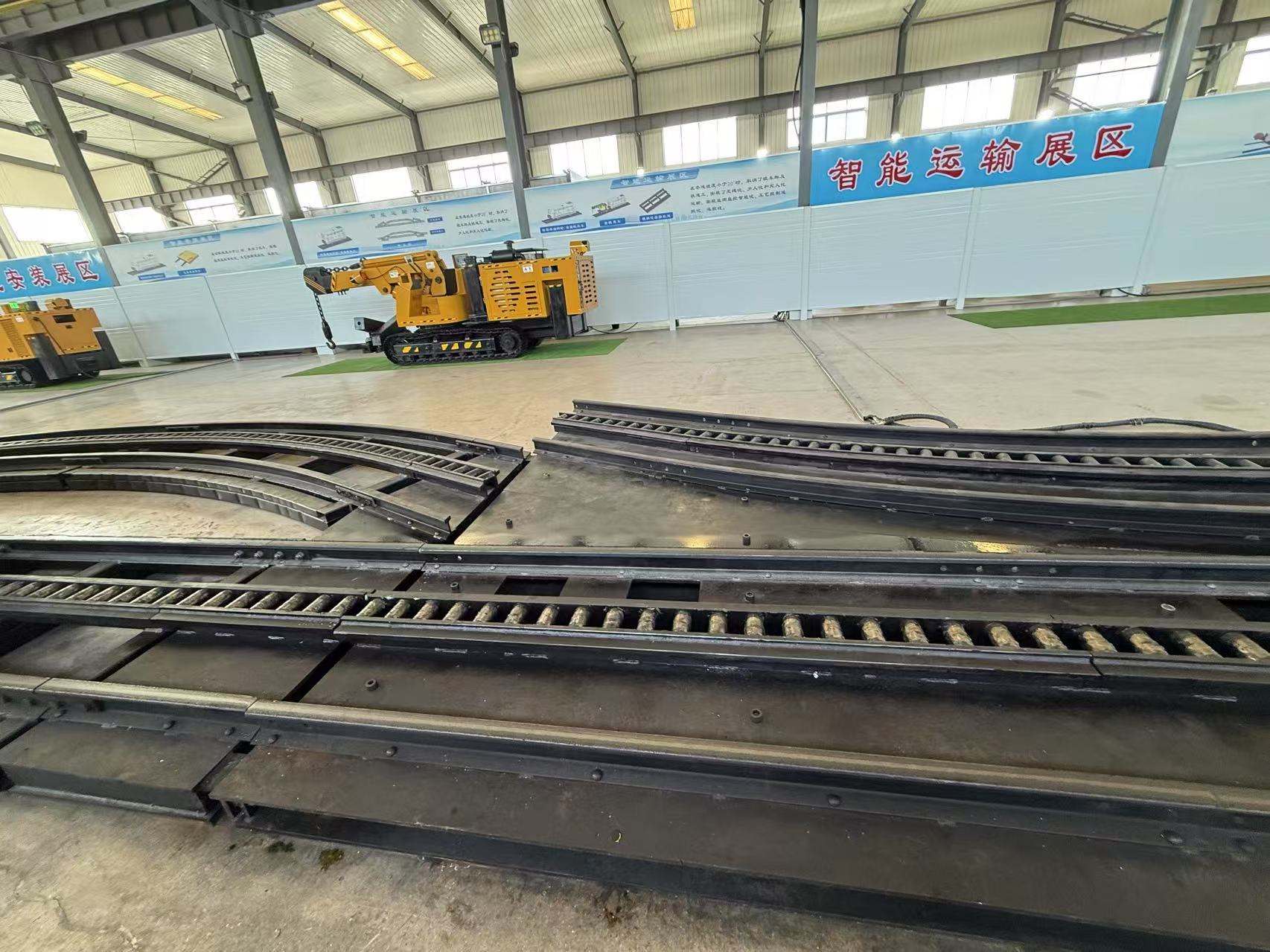

Coal mine track turnout switch is used to store empty vehicles or make vehicles pass (when light and heavy vehicles need to intersect and pass). A set of sliding turnouts is set at each end to achieve left and right traffic switching. Usually, a group of parking lots is designed in the flatter sections of the tunnel every 500 meters. During the installation or withdrawal of equipment, a group of coal mine track turnout switch should also be added near the hydraulic support installation area to facilitate vehicle dispatching and rotation operations. Coal mine underground parking yard plays an important role in mine construction and production. This type of coal mine underground parking yard is easy and fast to lay, has strict manufacturing and acceptance standards, and its track type, track gauge, and turnout inclination series are suitable for the varied uses of my country's coal mining industry.
Data of coal mine underground parking yard：
Item | Technical Parameter | Unit |
Overall Dimensions (Length×Width×Height) | 45000×4000×260/290 | mm |
Track Type | 30/38 | kg/m |
Track Gauge | 600/900 | mm |
Sliding Distance | 1300 | mm |
Total Weight of the Equipment | ≈27000 | kg |
Application of coal mining track parking Yard:
1. Railway marshaling yard: can be used to disassemble and re-marshall freight trains, and combine new trains according to different destinations.
2. Railway freight station: used for short-term parking of freight vehicles to be loaded/unloaded.
3. Urban rail transit yard: storage, maintenance of subways or trams, and daily scheduling.
4. Underground setting: used for vehicle scheduling during equipment installation and withdrawal.
FAQ:
1. What is the main function of the coal mine track turnout switch?
A: The core function of the yard is the scheduling, marshaling, decomposition and temporary parking of equipment and vehicles.
2. What are our advantages compared with traditional yards?
A: The core advantage of the coal mine track turnout switch is flexibility, and the modular structure is easy to install and disassemble.
