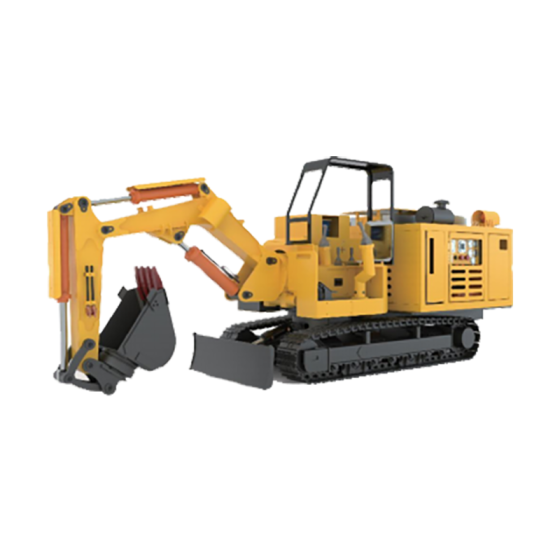

Hydraulic Excavator For Coal Mine
1. The working platform of Mining Excavators can rotate horizontally 360°; the boom adopts a three-section arm design and coal mine excavator can rotate ±90°.
2. Mining Excavators use high-power and high-torque engines, coal mine excavator are suitable for high-intensity mining operations.
3. Mining Excavators have a large-capacity bucket design to improve the mining and loading efficiency per unit time.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information
Introduction of coal Mine Excavator:
Coal mine excavator is a kind of engineering machinery equipment designed for mining and earthwork engineering. It is suitable for side wall trimming, floor leveling, track laying and transportation of small parts in underground coal mine tunnels. The whole machine body and working arm of Coal Mine Excavator can rotate left and right ±90°, and the bucket can rotate 360°. Coal Mine Excavator can be operated manually or remotely. When encountering rocks during side wall trimming or floor leveling operations, the excavation bucket can be replaced with a breaker for operation.
Features of hydraulic excavator:
1. The hydraulic excavator has a simple structure, light weight, coal excavator is strong mobility and flexibility, and strong climbing ability.
2. The joints of the hydraulic excavator are made of high-strength wear-resistant steel to increase the life of the whole machine.
3. The hydraulic excavator has two modes: manual operation and remote operation, coal excavator can be flexibly operated in combination with actual working conditions.
4. When the hydraulic excavator encounters rocks, the excavation bucket can be replaced with a breaker for operation.
Parameters of coal excavator:
| Item | Unit | Model: MWD6.6/0.13L | Model: MWD6.1/0.13L |
| Installed power | kW | 30 | 30 |
| Rated pressure | MPa | 24.5 | 24.5 |
| Travel drive mode | / | Integrated hydraulic motor, reducer drive | Integrated hydraulic motor, reducer drive |
| Track ground pressure ratio | MPa | ≤0.07 | ≤0.064 |
| Travel speed | m/min | 17 | 17 |
| Ground clearance | mm | ≥210 | ≥210 |
| Climbing ability | ° | 15 | 15 |
| Travel force | kN | ≥30 | ≥30 |
| Noise | dB(A) | ≤95 | ≤95 |
| Track shoe width | mm | 300 | 300 |
| Bucket capacity | m3 | 0.13 | 0.13 |
| Digging radius | mm | ≥4300 | ≥4300 |
| Digging distance | mm | ≥2870 | ≥3180 |
| Digging height | mm | ≥3280 | ≥3180 |
| Unloading height | mm | ≥2000 | ≥1900 |
| Digging depth | mm | ≥940 | ≥1040 |
| Digging force | kN | ≥16.3 | ≥16.3 |
| Track turning radius | m | ≤7 | ≤7 |
| Maximum rotation angle of rotary platform | ° | 180 | 180 |
| Slewing speed | r/min | 9 | 9 |
| Transportation dimensions (length × width × height) | mm | 5560 × 1350 × 2175 | 5560 × 1150 × 2142 |
| Work quality | Kg | 6470 | 6100 |
Precautions of mining excavators:
1. The operator of the coal excavator must be driven by a professionally trained and licensed operator. Mining excavators is strictly forbidden to operate without a license.
2. Before the coal excavator is officially used, hydraulic excavator is necessary to check whether all system equipment is operating normally.
3. Ensure that the foundation of the Mining Excavators operating area is stable and there is no risk of landslides. Keep no personnel close to the operating range during operation.
