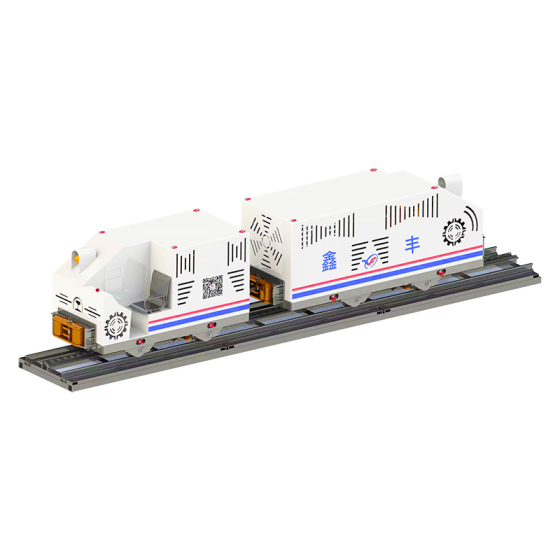

Explosion Proof Motor Toothed Rail Locomotive
1. Diesel explosion proof rack locomotive adopts remote control and intelligent operation, automatically detects obstacles, and alarms in time for abnormal working conditions.
2. Diesel explosion proof rack locomotive adopts high-efficiency and energy-saving motors with strong driving force and low noise, which are suitable for heavy-load transportation tasks.
3. Diesel explosion proof rack locomotive adopts modular track design, which is easy to lay, disassemble and maintain.
- Liaoning Xinfeng
- Diaobingshan , Tieling Liaoning
- According to order quantity
- About 1000 units/year
- Information

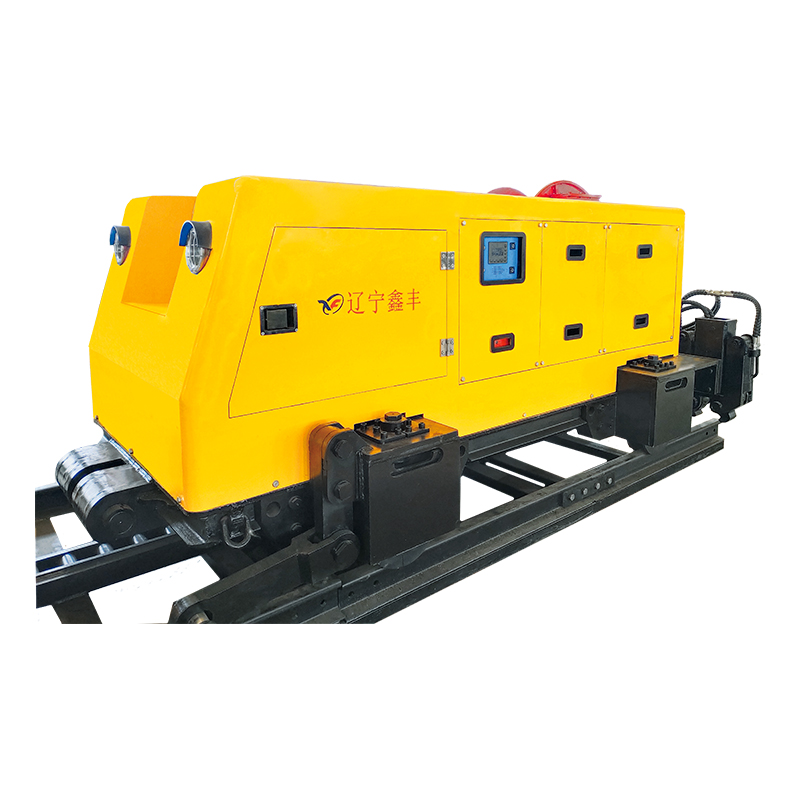

Introduction of motor rack explosion proof locomotive:
Mining explosion proof diesel locomotive is a transportation equipment designed for special environments such as underground coal mines. It is used to tow and transport hydraulic supports and other equipment. Mining explosion proof diesel locomotive can replace the traditional winch towing operation method to realize ropeless and unmanned transportation. Mining explosion proof diesel locomotive is driven by an electric motor and runs on a modular track. It can be remotely controlled and intelligently operated, and is equipped with reliable braking devices and remote detection functions. The driving system of Mining explosion proof diesel locomotive is composed of a combination of electric motors and hydraulic components, running along modular tracks and equipped with intelligent cable reels.
Features of motor rack explosion proof locomotive:
1. Diesel explosion proof rack locomotive abandons the traditional winch traction method and no longer relies on wire rope traction, effectively avoiding the risks of rope slippage, rope breakage, and rope jamming that may exist in winch operations.
2. Underground explosion proof rack locomotive uses a high-strength material shell and explosion-proof structure to effectively protect transportation safety.
3. Underground explosion proof rack locomotive is driven by a combination of electric motors and hydraulic components to improve system stability and power response speed.
4. Underground explosion proof rack locomotive adopts a modular structural design, which is suitable for narrow and steep underground tunnels and has strong climbing ability.
Parameters of motor rack explosion proof locomotive:
| Item | Technical Parameters | Unit | |
| Model | CDC190/55Y | CDC330/90Y | |
| Axle Distance | 1350 | mm | |
| Track Gauge | 1500 | mm | |
| Traction Force | 190 | 330 | kN |
| Power | 55 | 90 | kW |
| Overall Dimensions | 3520×2040×1800 | 5000×1400×2000 | mm |
| Grade ability | ≤25 | ° | |
| Traveling Speed | 13 | m/min | |
| Operation Method | Manual/remote control/remote | ||
| Total Weight of the Locomotive | 9500 | 13000 | kg |
Precautions for Motor rack explosion proof locomotive:
1. All explosion-proof motors, cables, junction boxes and other components must not be opened or modified without authorization to avoid damaging the explosion-proof structure and causing failure.
2. Before starting the product, check whether all explosion-proof signs are clear, whether the explosion-proof certificates are complete, and whether the explosion-proof shell is damaged or loose.
3. Users should undergo professional training and be proficient in the product's operating procedures, emergency braking methods and common fault handling procedures.
4. The traction force should be strictly used in accordance with the regulations to prevent accidents caused by overload operation of the product.
5. The rack and drive wheel must be properly engaged to avoid slipping or derailment due to misalignment and wear.
6. Regular inspections should be carried out to ensure that all transmission parts of the product are in good condition, reduce wear and extend service life.
